Description

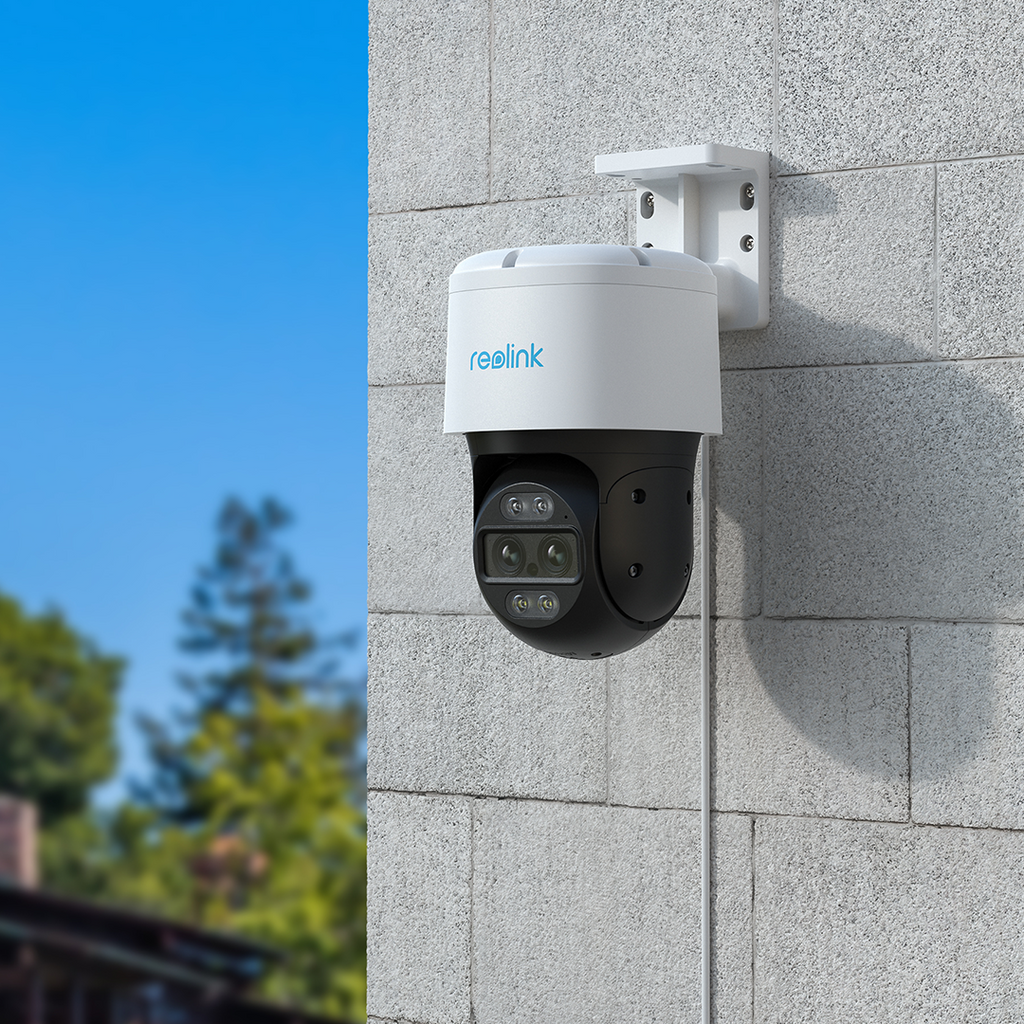

The Reolink TrackMix PoE is a dual-lens camera that captures both full-view and close-up images of the same event synchronously, and presents them on the same screen! It can pan 355° and tilt 90° and automatically track moving objects.
Follow It Automatically: The dual-tracking camera can pan, tilt (up to 355°H, 90°V) to auto track the object and show it in both the panoramic and zoomed views.
4K Brings You Closer to Reality: The camera with 4K 8MP Ultra HD resolution captures images with great details. Discover more when zooming in.
Smart Detection: TrackMix PoE can distinguish people, vehicles and pets* from other objects, providing more accurate alerts. Plus, you can talk back via the camera's built-in mic and speaker.
Two-Way Audio: Reolink TrackMix PoE has a built-in microphone and speaker to allow you to hear and talk to visitors in front of the camera in real time from anywhere.
Two Night Vision Modes: When its spotlights are on, TrackMix PoE provides full-colour night vision. Even when there's no light at all, its infrared LED still enables high-quality night recording videos.
PoE — Faster, Easier & Lower-Cost Installation: Thanks to Power over Ethernet (PoE) technology, this IP camera can transmit videos and be charged simultaneously via only one network cable. You can install this camera quickly and easily.
Time Lapse Fun Feature: TrackMix PoE supports time-lapse video recording, you can film snow piling up in your backyard, or record construction process in minutes.
Note: Only its wide-angle view supports time lapse, which is incompatible when camera is connected to NVRs.
Stay Strong, Stay Weatherproof: The rugged housing and body make this Reolink smart IP camera waterproof. It works perfectly both inside and outside your house, in any harsh weather conditions.
Storage Options: This smart IP camera supports 24/7 continuous, motion-triggered, or scheduled recordings. All the videos can be saved to the micro SD card, Reolink NVR or FTP server. Choose a way you like and enjoy customised security. Supports up to 256GB micro SD card (not included).
Real-Time Alerts: Once it detects the suspicious object, the camera will auto track it and send to your device an instant push notification. You can configure when you want to enable notifications—all the time or on a specific schedule via the easy-to-use Reolink App.
Dual View & Live View: Live view what's happening with both the wide-angle view and the close-up view on the same screen via the free Reolink App. You can easily click to check what's happening in your home or business and quickly search for the key evidence or funny moments.
Easy & Smart Playback: You can replay the saved videos, filter them by detection modes and control the timeline to quickly locate what you want to see.
Motion Zones: You can customise the motion zone to your liking, deciding where where objects' movements will be detected and where not.
Voice Control: As easy as saying "Hey Google, show me the Front Door", you can check what's happening there on your Google Nest Hub or Chromecast-enabled TVs.
What's in the box?
Shipping: All orders are shipped from within the Republic of Ireland with free delivery on orders over €100. €5.99 for order under €100.
Packages are generally dispatched the next day after receipt of payment and are shipped via An Post Express postage. We now also ship to Northern Ireland for a fee of €9.99 and mainland UK for a fee of €14.99.
Delivery Time - Ireland:
Please allow 1-3 working days for delivery within Ireland but generally* you will receive next day if the order is placed before 3pm Monday to Thursday.
*Not guaranteed.
Delivery Time - UK:
Please allow up to 5-7 working days for delivery to the UK.
Returns: We operate a 14 day change of mind refund policy provided goods are returned unused, in original packaging, in original condition and accompanied by proof of purchase. It is our policy to return goods to the purchaser if we suspect that any product has been used.
See full returns and faulty policy here.
Prior to returning any goods, please contact our Online Team at info@connectit.ie who will guide you through our returns process.
Technical Specs for Reolink TrackMix PoE
| Image Sensor | 1/3"+1/2.8"CMOS Sensor |
|
Video Resolution |
Up to: 3840 x 2160 (8.0 megapixels) at 25 frames/sec |
| Lens | f=2.8mm@F=1.6，f=8mm@F=1.6 |
| Video Format | H.264,H.265 |
| Field of View |
Horizontal: 104°-38° |
| Zoom Mode | 6X hybrid zoom |
| Day & Night | IR-cut filter with auto-switching |
|
Infrared Night Vision |
Up to 30 Meters (100ft)(LED: 2pcs/850nm) |
|
Colour Night Vision |
Spotlight: 1pcs/6500K/450 Lumens |
| Audio | Two-way audio |
| PoE | IEEE 802.3af, 48V active |
| DC Power | DC 12.0V⎓2A, <12W |
| Power | DC port |
| Ethernet | One 10M/100Mbps RJ45 |
| Storage | Micro SD card slot (max. 128GB) |
| Audio |
Built-in microphone and speaker |
| Pan & Tilt | Pan: 355°, Tilt: 0°~90° |
| Pan Speed | 2.5°-90°/s (Speed can be set) |
| Tilt Speed | 1.5°-60°/s (Speed can be set) |
| Preset | 32 |
| Auto Tracking | Supports |
| Frame Rate |
• Mainstream: 2fps - 25fps • Substream: 4fps - 20fps |
| Code Rate |
• Mainstream: 4096Kbps -8192Kbps • Substream: 128Kbps -1228Kbps |
| OS Supported | PC: Windows, Mac OS; Smartphone: iOS, Android |
| Smart Alarm | Motion detection; person detection; vehicle detection; pet detection |
|
Record Mode |
Motion/scheduled recording (default: motion recording) |
| Tracking Method | Digital Tracking; Pan/Tilt Tracking First; Digital Tracking First |
| Protocol & Standards | HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P |
| Maximum User Access |
Supports up to 12 simultaneous video streams (10 substreams & 2 mainstreams) 20 users (1 admin account & 19 user accounts); |
| Operating Temperature | -10°C~+55°C |
| Operating Humidity | 10% ~ 90% |
| Weatherproof | IP65 |
| Dimensions | 228 x 147 x 110mm |
| Weight | 1.21KG |
FAQs for Reolink TrackMix PoE
What is dual-tracking?
Dual-tracking refers to the two ways that a TrackMix camera simultaneously uses to auto track an object in both the wide-angle and zoomed views.
In the panoramic view, which is captured by the camera's wide-angle lens, the camera pans and tilts to keep the detected objects within its field of view; In the zoomed view, which is produced by the two lenses cooperatively, the camera zooms in to the targeted object (which is within the camera's field) to closely follow its movement. It's notable that the TrackMix camera uses advanced technology to restore details and definition to the zoomed-in image, enhancing the image quality.
This can help you track the situation and details at the same time, without manually making the camera pan, tilt or zoom in.
What is hybrid zoom?
Hybrid zoom is a combination of optical zoom and digital zoom. Reolink TrackMix series are equipped with a wide-angle lens and a telephoto lens. First, the wide-angle lens provides digital zoom. Then it switches to the telephoto lens for optical zoom. After that, the telephoto lens zooms in digitally. Thus, compared to digital zoom, hybrid zoom can retain more details and provide sharper images when zooming in.
2. When it works with an NVR, the recordings can be saved to the NVR.
Note: (1)For best compatibility, do not use the camera with third-party NVRs.
(2)Although the camera occupies only one channel for recording, it will produce two separate recording files.
For the NVR with the Hw_H3MB18, Hw_N3MB01, and Hw_N2MB02 hardware, you need to upgrade the NVR's firmware to the latest version for video displaying.
If you want to buy a new compatible NVR, you can check its hardware version on its Specs page before placing the order.
This camera supports up to 256GB micro SD cards with FAT32 format and Class 10 read & write speed.
Method 2: You can treat your Synology device as an FTP server. For detailed steps, check How to Set up FTP for Reolink Products.
Please note that by default the wide-angle view will be shown on the Synology. You can manually switch it to the zoomed view. For a dual-view display, make sure the camera can occupy two channels.
Can this camera support time-lapse function?
Yes, the camera supports time-lapse for its wide-angle lens. It can save time-lapse photos and videos to the SD card.
Does my camera support person/vehicle detection?
Yes, this camera supports person/vehicle detection. It can also detects the cat and dog (beta version).
Yes, the camera supports two-way audio via its built-in mic and speaker. You can not only capture videos with audio recorded but also have real-time communication with people on the camera's end through Reolink App or Client.
Yes, you can turn off the spotlights manually.
By default, the camera's spotlights are motion activated: it will turn on automatically when a motion is detected. You can turn them off or adjust the brightness to your liking.
Please note that with the spotlights on you can enjoy clear color night vision, but if the spotlights are turned off, you will only see black and white images at night.
Yes, currently, this camera can work with Google Assistant.
You can add and set up the camera on Reolink APP/Client. Then click the camera to check the live view and playback of it from anywhere, at any time. Yet, via the App, you can live view in the dual-view display only in fluent mode; Via browsers, you cannot check two views synchronously.
Reolink APP/Client is free of charge and the service is free of subscription.
The camera supports T-568B connectors and 8-PIN Ethernet cables of CAT5 or higher.
No, Reolink PoE cameras work well on their own without subscription fees. You can make full use of the person/vehicle/pet detection, local storage, and other functions for free!
Yes, the camera works with Reolink IoT devices, including Reolink Floodlight PoE/WiFi. The specific functions supported depend on the camera. When Reolink Floodlight is linked to a camera, the floodlight and the built-in siren will be triggered once the camera detects an event.
There are two methods:
1. Via an Ethernet cable, connect the camera to a PoE NVR, PoE injector, PoE switch, or directly to a router with a PoE port, for both power supply and video signal transmission.
Note: Please make sure that the PoE injector/switch is 802.3at compliant (48V) and supports active mode.
2.Via its DC 12V 2A power adapter for power supply only.
