Description

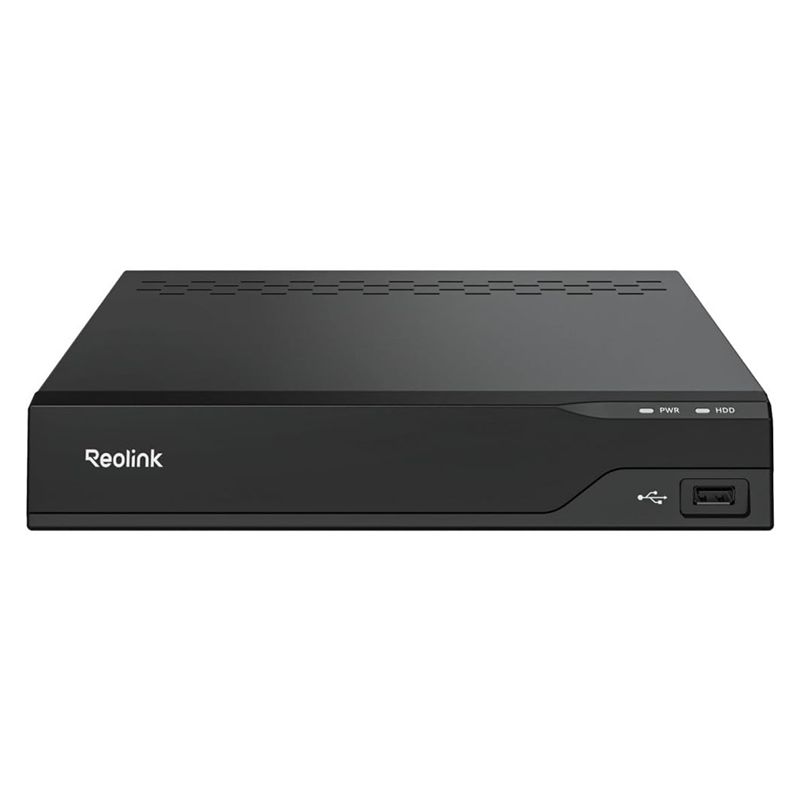

With a built-in 2TB HDD and expandable storage up to 32TB, the RP-PN8 is perfect for businesses and demanding surveillance needs.
Secure Local Storage: Reolink RP-PN8 supports video file encryption, where recordings will be securely stored and encrypted, requiring a password for playback even after a factory reset. This provides an added layer of data protection should the NVR be stolen.

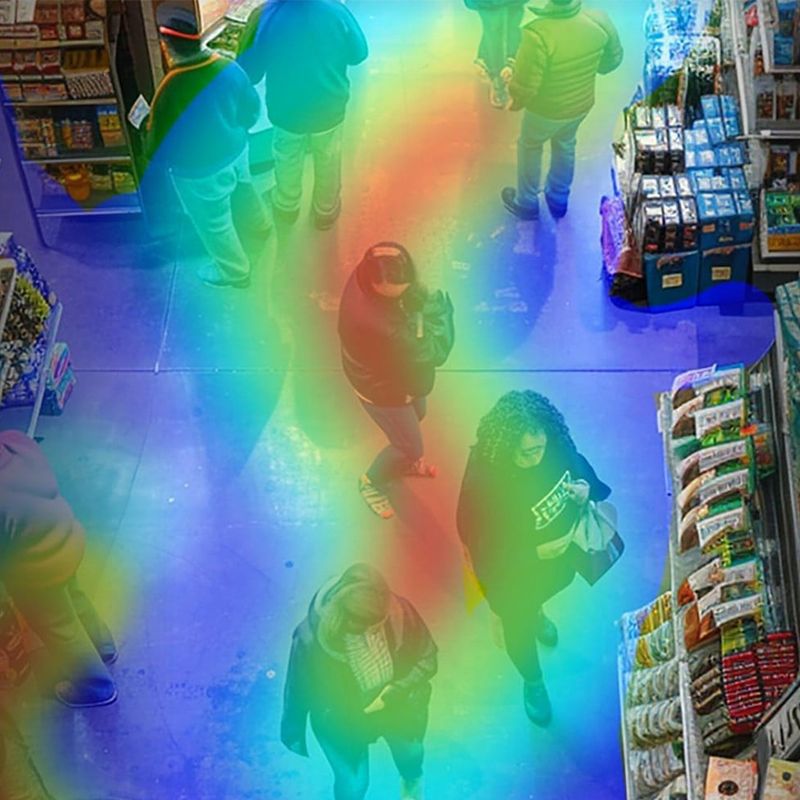

Visualise with Heat Mapping: Using colour variations, heat mapping visualises the distribution, density, and intensity of collected data, enabling the monitoring and analysis of target traffic within a defined area. Ideal for malls, supermarkets, and museums, this feature helps to optimize layout and product placement by showing how people move and linger within your space.
AI Video Search: Input descriptive keywords (e.g. "person wearing white clothes", "yellow dog") to search specific video clips in locally saved triggered recordings. Filter out irrelevant clips and pinpoint the target alarm event in no time.
Perimeter Protection: Equipped with AI-driven Line Crossing Alert, Zone Intrusion Alert, and Zone Lingering Alert, it delivers precise 24/7 protection for critical areas, enabling rapid response to security threats.
Smart Event Detection(Beta): Send instant alerts on objects forgotten or removed from key areas, ensuring timely action and loss prevention.
Multi-User Support: This NVR supports both local and remote camera access. View live feeds and manage your system via monitor, PC client, or app. With up to 12 simultaneous users (2 mainstreams + 10 substreams), your team can stay connected anytime, anywhere.

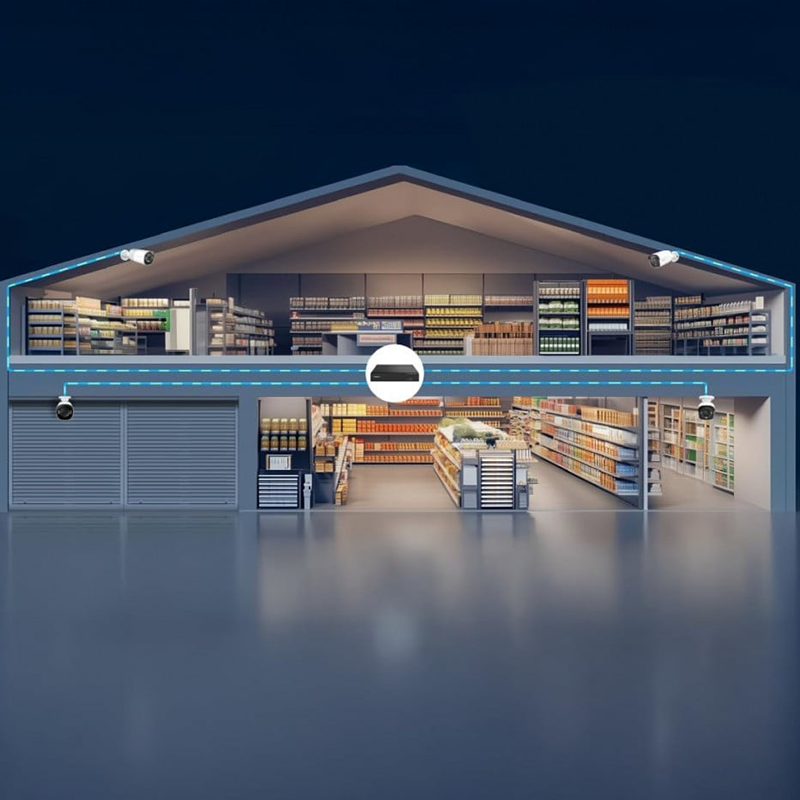

Flexible PoE & Central Control: Using PoE technology, the RP-PN8 provides power and network access to each connected camera through a single cable, reducing the need for extra power sources and simplifying installation. This provides seamless integration and management of all your connected cameras, a unified surveillance system that can adapt to various environments, be it at the office, or retail stores.
What's in the box?
Technical Specs for Reolink RP-PN8
|
IP Video Input
|
Up to 12 IP Cameras (Max.8 wired cameras)
Up to 16 MP resolution |
| Audio Input | Cameras with bulit-in MIC |
|
Incoming Bandwidth |
240Mbps
|
|
Outgoing Bandwidth |
240Mbps
|
| Video Output |
1 HDMI, 1 VGA
|
|
Display Resolution
|
HDMI: 3840x2160, 1920x1080, 1280x1024, 1280x720, 1024x768 VGA: 1920x1080, 1280x1024, 1280x720, 1024x768 |
| Audio Output |
1 audio out channel, RCA |
| Live View/Playback Resolution |
7680X2160, 4608X1728, 4512X2512, 4096X3072, 3840X2160, 2560X2560, 2560X1920, 2560X1440, 2048X1536, 2304X1296,1080P,720P
|
| Synchronous Playback | 1-4 channels (Supports only 1-channel playback if you view it in 8MP or higher resolution) |
| SATA |
1 x SATA interface (1 x 2TB HDD included) |
|
External HDD |
1 eSATA interface for HDD |
| Capacity | Up to 32TB (up to 16TB capacity for each HDD) |
| USB Interface |
2 x USB 2.0
|
| Network Interface | 8 x RJ-45, 10/100 Mbps self-adaptive PoE Ethernet interface (for IP cameras) 1 x RJ-45, 10/100/1000 Mbps self-adaptive (for LAN/WAN) |
| Max. Power Per Port |
25W
|
|
Supported Standard |
IEEE 802.3 af/at |
|
Network Protocols |
HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, RTMP, SMTP, SSL/TLS, DNS, DDNS, NTP,FTP |
| Browsers Supported |
Edge, Firefox, Chrome, Safari
|
| Max User Access | 20 Users (1 admin account & 19 user accounts); supports up to 12 simultaneous video streams (10 substreams & 2 mainstreams) |
| Power Supply | DC 52V/2.3A |
| Power Consumption | <10W (without HDD & PoE) |
| Working Environment | Temperature: -10°C ~ + 45°C (14°F ~ 113°F); Humidity: 10% ~ 90% |
| Dimensions | 255mmx50mmx211mm |
| Weight | 1.4kg(without HDD) 1.8kg(with HDD) |
FAQs for Reolink RP-PN8
How can I expand the NVR's storage capacity?
You can replace the pre-installed 2TB HDD with a larger one and add an external HDD for the NVR. The RP-PN8 supports up to 32TB total: Max. 16TB via internal SATA, Max. 16TB via external eSATA.
Can I Add a PoE Switch?
Yes, there are three common connection methods
Method 1: Connect both the PoE NVR and PoE switch to the same router via Ethernet cables. Then connect cameras to the switch or NVR.
Method 2: Connect the PoE switch to the NVR, then connect the NVR's LAN port to the router.
Method 3: Connect the PoE switch to the router, then connect the NVR's LAN port to the switch.
Note: Adding PoE switches does not allow for an increase in number of cameras your NVR is able to support, as its channel limit is fixed.
Can I connect the NVR to the router wirelessly?
No, the NVR must be connected to the router via an Ethernet cable.
Can I use third-party cameras with the NVR?
It's not recommended. Third-party cameras may have compatibility issues. Please contact our support ream for protocol-relatiod inquires.
How long can the NVR record?
Recording time depends on the bit rate setting—the higher the bit rate, the better the quality, leading to a larger file size.
Are the RLC, Argus, TrackMix, and Duo Series compatible with RP-PN8?
Yes, these models are compatible except the 4G/LTE version.
