Description

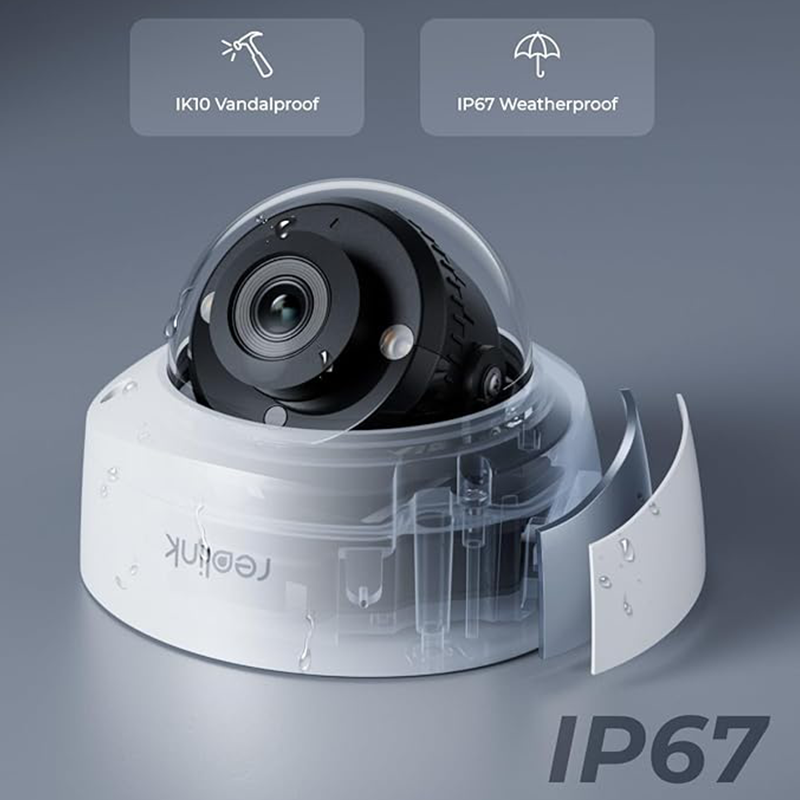

RLC-540A withstands vandalism and extreme weather conditions, giving you year-round protection thanks to its IK10 vandal-proof and IP67 weatherproof ratings. It's versatile for both indoor and outdoor settings, easily mountable on walls or ceilings.
Multiple Night Vision Modes: See incredibly sharp details in 5MP HD videos at a high frame rate of 30fps. Colour/infrared night vision reveals all nighttime details in stunning 5MP super HD. Darkness is no longer an obstacle for monitoring.
Smart Detection: Smartly distinguish person, vehicle, and animal shapes from other objects, sending precise alerts instantly. This minimizes false alarms triggered by shadows or leaves. Enjoy this service without any monthly fees.
Double Warnings: Upon intruder detection, the spotlight and siren will activate automatically to deter crime. Additionally, you have manual control over these tools via the Reolink App/Client for added security.
Two-Way Audio: With the built-in microphone and speaker, you can engage in real-time conversation with your visitors or warn suspicious strangers to stay away. A direct yet highly effective feature.
PoE Connection: Thanks to the advanced power over Ethernet technology, a single cable handles both the data and the stable power supply for RLC-540A, eliminating the need for many wires and providing added convenience.
Local Storage Options: RLC-540A supports 24/7 continuous, motion-triggered, or scheduled recording, offering versatile storage options like microSD card (up to 256GB), Reolink NVR, or FTP server. Rest assured that your data are stored locally and kept in your control, ensuring worry-free privacy and security.
Enhance Efficiency with H.265: H.265 video coding format drastically reduces file sizes, granting you ample space for more recordings.
Have Fun with Time Lapse: Condense an entire day's events into captivating minutes. Enjoy mesmerizing transformation.
Real-Time Alerts: Upon motion events, RLC-540A will send real-time push notifications and emails to you, ensuring that you are aware of what has happened and fully prepared.
Remote Live View: Seamlessly monitor your property from anywhere with a smooth live view accessible across multiple devices, like your smartphone or PC.
Smart Playback: Easily filter and search through saved videos using event types and timelines, effortlessly locating the video footage you need.
Customized Motion Zone: Tailor your motion detection zones to specific needs, focusing on critical areas and minimizing false alerts.
Control Your Cameras Hands-Free: As easy as saying "Hey Google, show me the backyard", you can check what's happening on the monitor.
What's in the box?
Technical Specs for Reolink RLC-540A
|
Image Sensor
|
1/2.7" CMOS Sensor |
| Video Resolution | 2560x1920 (5 Megapixels)@30FPS |
| Lens | f=2.8mm/F2.0 |
| Video Format |
H.265/H.264
|
| Field of View | Horizontal: 100° Vertical: 75° Diagonal: 130° |
|
Infrared Night Vision
|
Up tp 30 meters(100ft); LED: 2pcs/2W/850nm (Auto-switching with IR-cut filter) |
| Colour Night Vision | With spotlights: 2pcs/3w/3000K (Adjustable) |
| PoE | IEEE 802.3af, 48V Active |
| Frame Rate | Main stream: 2fps - 30fps (default: 30fps) Sub stream: 4fps - 15fps (default: 10fps) |
| Code Rate | Main stream: 1024Kbps - 8192Kbps (default: 6144Kbps) Sub stream: 64Kbps - 512Kbps (default: 256Kbps) |
| PoE | IEEE 802.3af, 48V, active |
| Audio | Two-way audio |
| DC Power | DC 12.0V⎓1A, <12W |
| Ethernet | One 10M/100Mbps; RJ45 |
| Storage | microSD card slot (Max. 256GB) |
| Browsers Supported | Edge, Chrome, Firefox, Safari |
| OS Supported | PC: Windows, Mac OS; Smartphone: iOS, Android |
| Smart Alarm | Motion detection/person detection/vehicle detection/pet detection |
| Record Mode |
Motion-triggered recording (default); Scheduled recording, 24/7 recording
|
| Protocols & Standards | HTTPS, SSL, TCP/IP, UDP, HTTP,IPv4, UPnP, RTSP, RTMP, ONVIF, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P |
| Maximal User Access | 20 Users (1 admin account & 19 user accounts); support up to 12 simultaneous video streams (10 substreams & 2 mainstreams) |
| Operating Temperature | -10°C to 55°C |
| Operating Humidity | 10% - 90% |
| Waterproof | IP67 |
| Dimensions | Φ117.4x86mm |
| Weight |
570g
|
FAQs for Reolink RLC-540A
No, Reolink PoE cameras work well on their own without subscription fees. You can make full use of the person/vehicle/pet detection, local storage, and other functions for free!
Yes, this camera supports person/vehicle/animal detection.
Yes, the camera supports two-way audio via its built-in mic and speaker. You can not only capture videos with audio recorded but also have real-time communication with people on the camera's end through Reolink App or Client.
Yes, you can turn off the spotlights manually.
By default, the camera's spotlights are motion activated: it will turn on automatically when a motion is detected. You can turn them off or adjust the brightness to your liking.
Please note that with the spotlights on you can enjoy clear color night vision, but if the spotlights are turned off, you will only see black and white images at night.
There are two methods:
1. Via an Ethernet cable, connect the camera to a PoE NVR, PoE injector, PoE switch, or directly to a router with a PoE port, for both power supply and video signal transmission.
Note: Please make sure that the PoE injector/switch is 802.3 af compliant (48V) and supports active mode.
2.Via a DC 12V 1A power adapter (purchased separately), connect the camera to power outlet for power supply only.
The camera supports T-568B connectors and 8-PIN Ethernet cables of CAT5 or higher.
You can add and set up the camera on Reolink APP/Client. Then click the camera to check the live view and playback of it from anywhere, at any time.
Reolink APP/Client is free of charge and the service is free of subscription.
Yes, the camera can support time-lapse. It can save time-lapse photos and videos to the SD card.
This camera supports up to 256GB microSD cards with FAT32 format and Class 10 read & write speed.
The camera can work without an NVR.
1. When it works without an NVR, the recordings can be saved to the microSD card (purchased separately);
2. When it works with an NVR, the recordings can be saved to the NVR.
Note: For best compatibility, do not use the camera with third-party NVRs.
If you want to buy a new one: the currently on-sale NVRs work with all PoE and plug-in WiFi cameras.
If you already have one:
Please first refer to this article for its hardware version.
For the NVR with the hardware N7MB01, N6MB01, or N5MB01, it works with all PoE and plug-in WiFi cameras.
For the NVR with the hardware N2MB02, N3MB01, or H3MB18, it works with all PoE and plug-in WiFi cameras. But you can not have a full-resolution live view of the following cameras: RLC-1212A, RLC-1224A, Reolink Duo 2 PoE, Reolink Duo 2 WiFi, Reolink Duo Floodlight WiFi, Reolink Duo Floodlight PoE.
For the NVR with the rest hardwares such as H3MB17, H3MB02, and H3MB16, please refer to Introduction to Hardware Versions of Reolink NVRs for more detailed information.
The RTSP and other ports may be disabled by default. You can launch Reolink Client, then go to Device Settings >> Network >> Advanced >> Port Settings to make sure all ports are enabled before using 3rd party softwares.
Yes, currently, this camera can work with Google Assistant.
Tips: How to add this camera to Google Assistant?
