Description

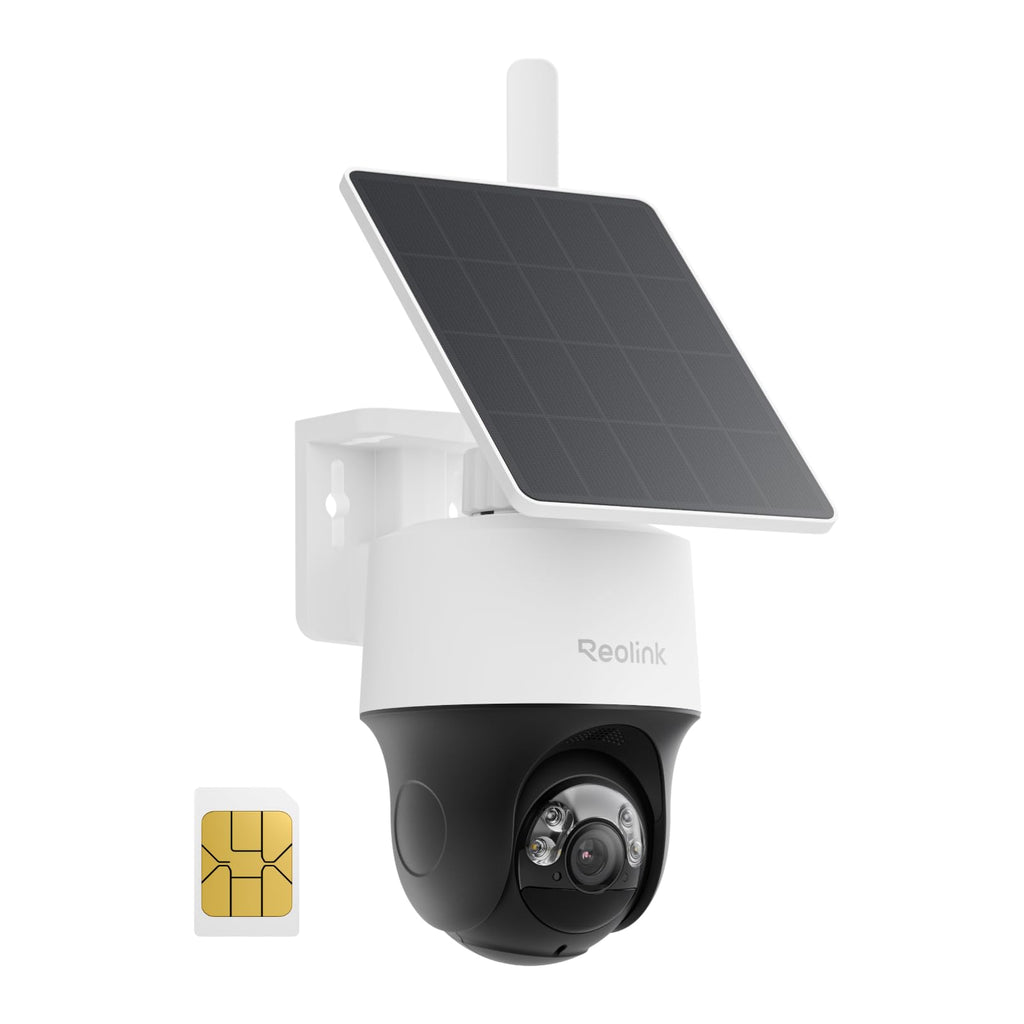

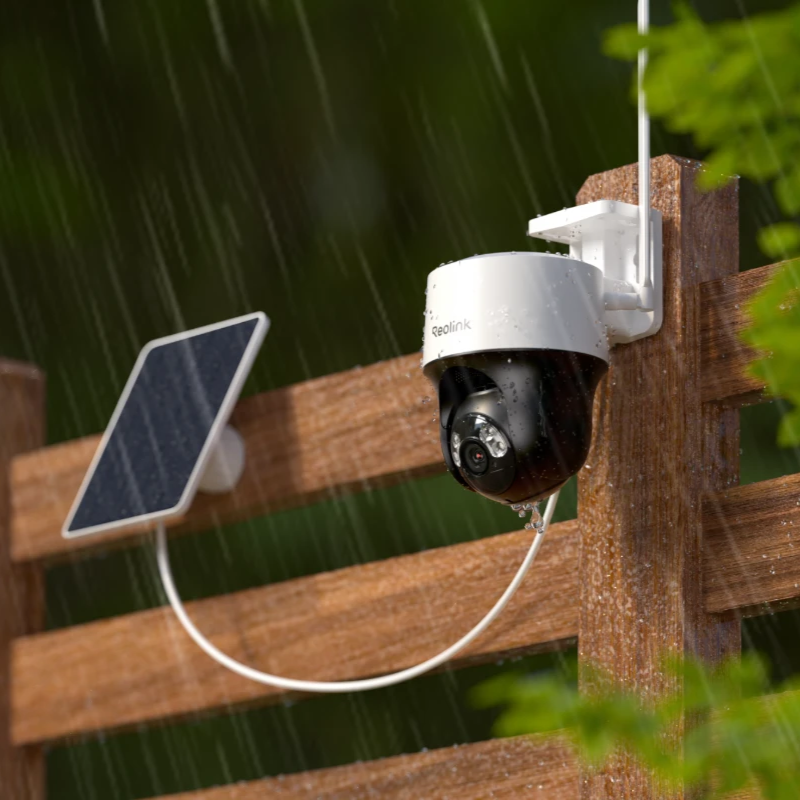

Technical Specs for Reolink Go PT S Lite
Video & Audio
| Specification | Details |
|---|---|
| Image Sensor | 1/3", 2um |
| Resolution | 2560 × 1440 (4 megapixels) @15fps |
| Lens | f=2.8mm, F1.6, IR-cut |
| Video Compression | H.264 / H.265 |
| Field of View | Diagonal: 112° Horizontal: 95° Vertical: 51.5° |
| Infrared Night Vision | 10m (33 ft) (LED: 2pcs / 1.2W / 850nm) |
| Day & Night | Auto-switching with IR-cut filter |
| Color Night Vision | 2pcs / 2.4W / 6500K |
| Frame Rate | 10fps – 15fps (default: 15fps) |
| Code Rate | Mainstream: 1024Kbps – 4096Kbps (default: 2048Kbps) Substream: 64Kbps – 672Kbps (default: 672Kbps) |
| Audio | Two-way audio |
Power
| Battery | DC: 5V/2A, 3.6V 6000mAh (battery capacity), rechargeable battery: 21.24Wh (power capacity) |
Interface
| Power Port | Reset Button | SD Card Slot | Audio In/Out |
|---|---|---|---|
| USB Type-C port | Yes | Supports Max. 512GB microSD card | Built-in microphone and speaker |
Pan & Tilt
| Specification | Details |
|---|---|
| PT Angle (Max.) | Pan: 355°, Tilt: 140° |
| Preset Points | Supports 1 guard position & up to 64 preset positions |
| Auto Tracking | Yes |
3G / 4G
| Region | Details |
|---|---|
| America | SIM7670G LTE FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66/B71 LTE TDD: B34/B38/B39/B40/B41 |
| Australia/Europe | EG800K-EU LTE FDD: B1/B3/B5/B7/B8/B20/B28 |
Software
| Specification | Details |
|---|---|
| OS Supported | PC: Windows, Mac OS; Smartphone: iOS, Android |
| Protocols & Standards | SSL, TCP/IP, UDP, UPNP, SMTP, P2P |
| User Access | Max. 12 simultaneous streams (2 main & 10 sub streams) |
Other Features
| Specification | Details |
|---|---|
| Smart Alarm | PIR detection; motion detection; person detection; vehicle detection; animal detection |
| PIR Detection Distance | Up to 10m (33ft) |
| PIR Detecting Angle | 120° horizontal |
| Recording Modes | Motion Recording |
| Time Lapse | Yes |
| Smart Home Compatibility | Alexa, Google Assistant, Reolink Cloud |
| Cloud Storage | Supports Reolink Cloud (available in selected countries) |
Working Environment
| Specification | Details |
|---|---|
| Operating Temperature | -10°C ~ 55°C (14°F ~ 131°F) |
| Operating Humidity | 20% ~ 85% |
Mechanical
| Specification | Details |
|---|---|
| Dimensions | Ø98 × 122mm |
| Weight | 485g |
Warranty
| Limited Warranty | 2-year limited warranty. For support, visit https://support.reolink.com/hc/en-us/. |
