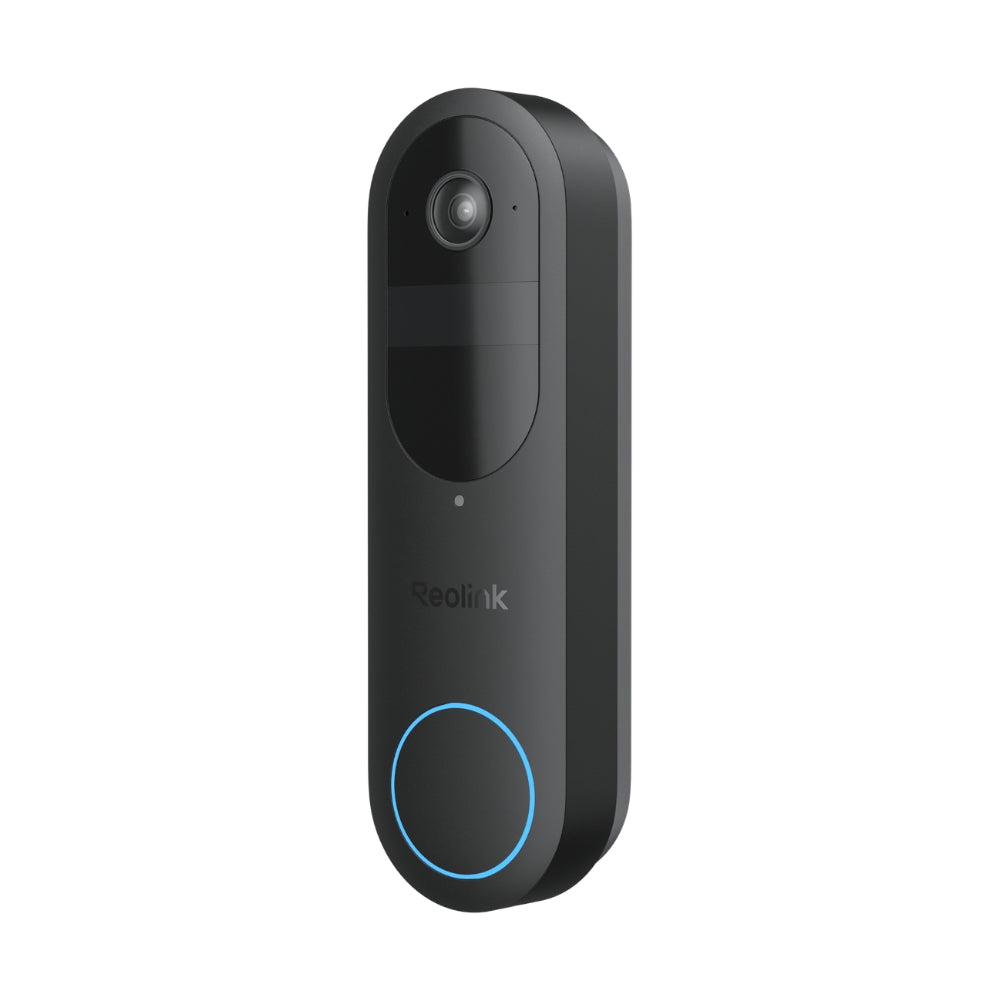

Technical Specs for Reolink Doorbell (2nd Gen)

| Image Sensor |
1/3" CMOS sensor
|
| Resolution | 2048 × 2048 (4 megapixels) @15fps |
| Video Compression | H.264/H.265 |
| Lens | f=1.2mm, F=1.8 |
| Field of View |
|
| Audio | Two-way audio |
| Battery | Up to 300 days of battery life (Based on 5-min recordings per day) |
| Live View/ Playback Resolution | |

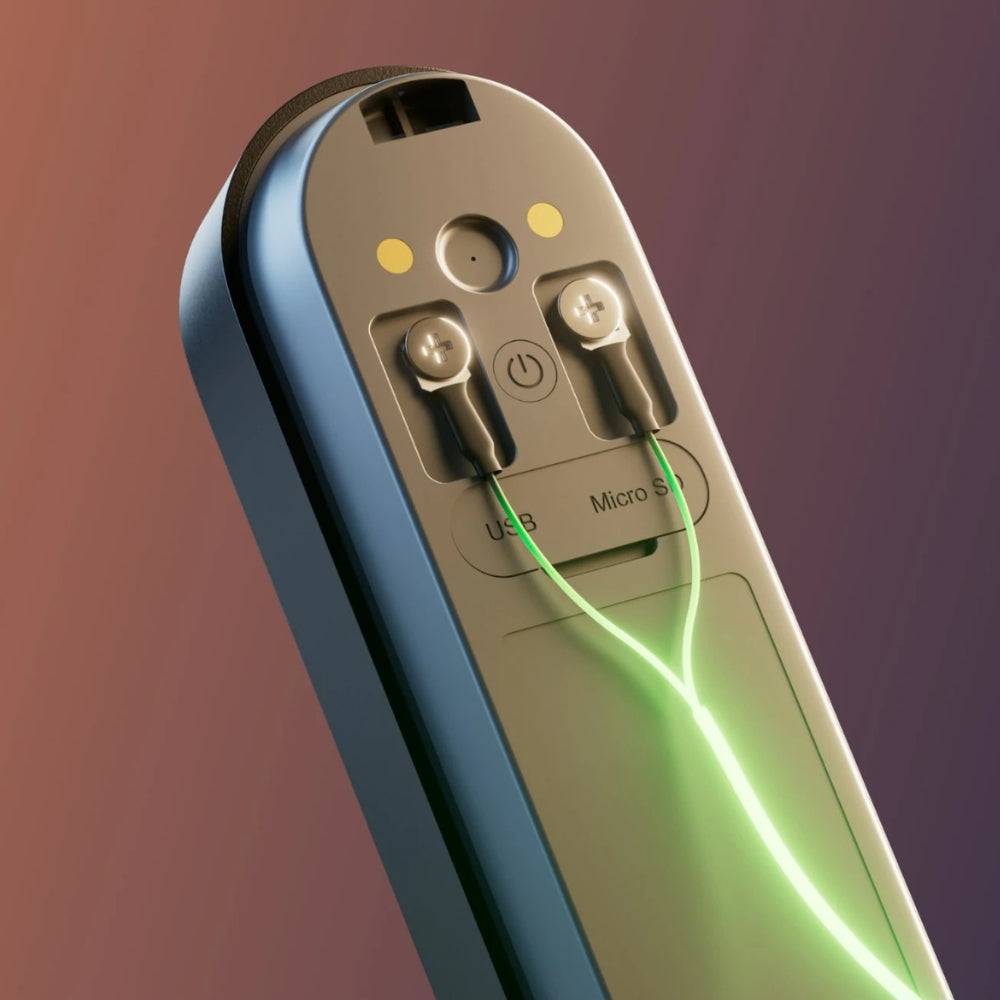

| Hardwired | Battery Power Mode: 8-24V AC, 24V DC Wired Power Mode: 16-24V AC, 24V DC |
| Power Port |

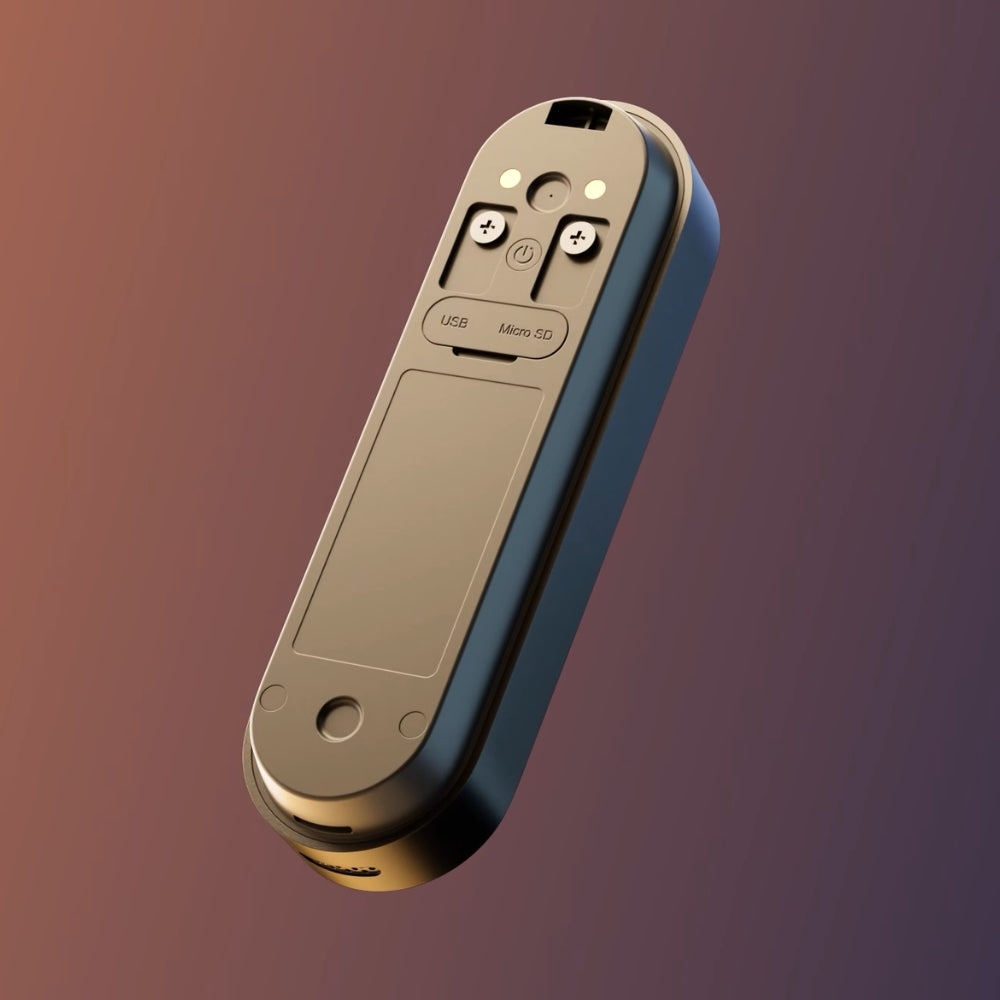

USB Type-C port
|
| SD Card Slot | Supports Max. 512GB microSD card |
| Reset/Power Switch |
YES |
| Audio In/Out |
Built-in 2 microphones and a speaker
|
| Wireless Standard |
IEEE 802.11 a/b/g/n |
| Operating Frequency |
2.4 GHz/5 GHz
|
| Wireless Security | WPA/WPA2 |
| Protocols & Standards |
SSL, TCP/IP, UDP, SMTP, NTP, P2P, ONVIF*, RTSP*
(*Requires App 4.62.1+) |
| OS Supported |
PC: Windows, Mac OS; Smartphone: iOS, Android
|

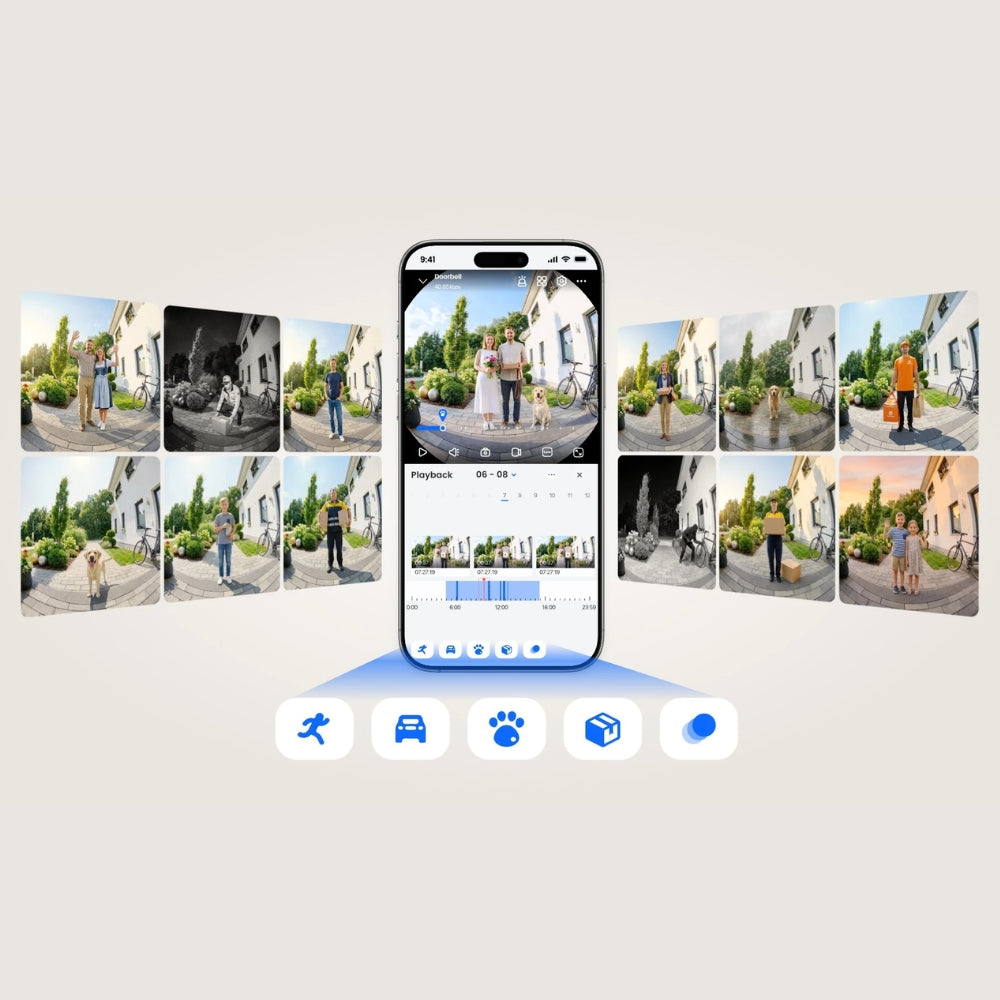

| Smart Alarm | Motion detection; person/vehicle/animal detection; package detection; visitor detection |
| Recording Modes | Battery mode: motion-triggered recording; wired mode: 24/7 recording & pre-recording |
| Smart Home | Google Assistant; Alexa; IFTTT; Home Assistant* (*Direct connection supported; no Home Hub required.) |
| Cloud Storage | Supports Reolink Cloud (available in selected countries) |
| Rich Notification | YES |

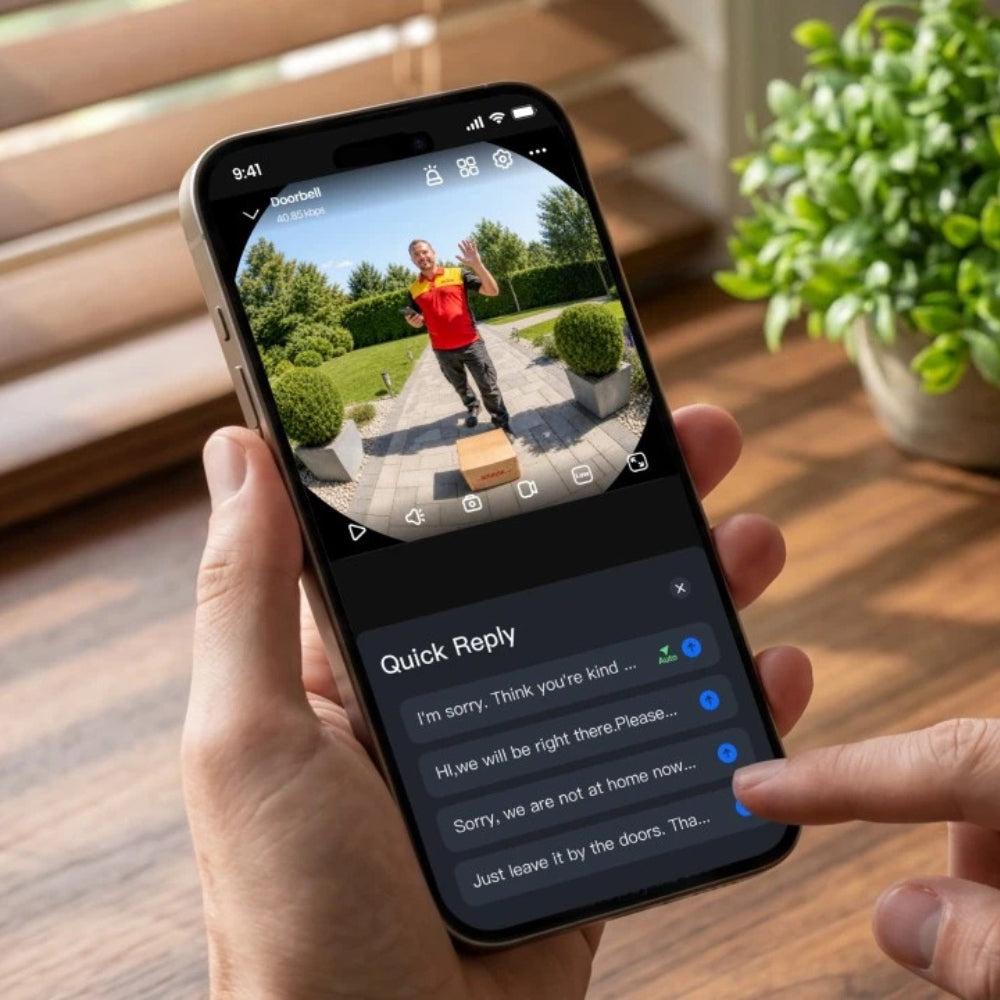

| Quick Replies |
YES |
| Tamper Alert |
YES |
| Video Call |
YES |
| Operating Temperature |
-10°C to 55°C (14°F to 131°F) |
| Operating Humidity |
10% ~ 90%
|
| Weatherproof |

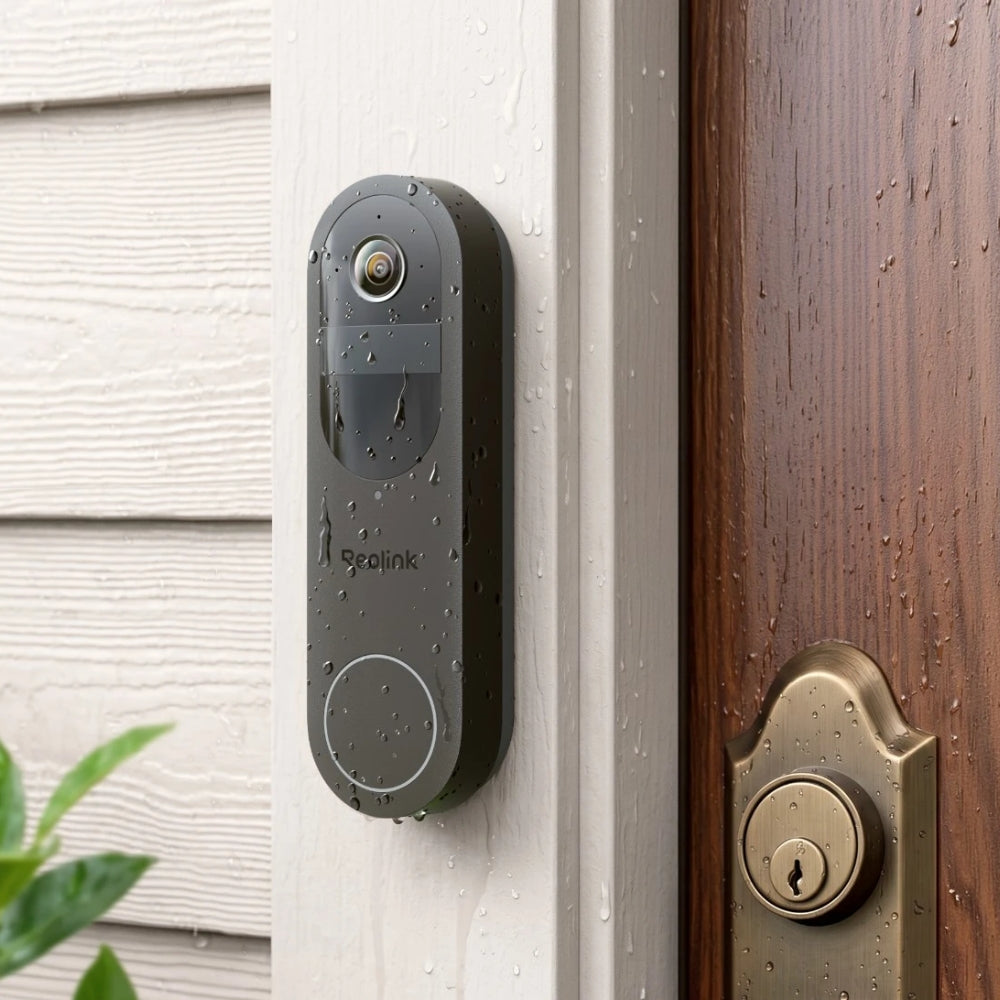

IP65 certified
|
| Dimensions | 160.0 x 48.0 x 29.5 mm |
| Weight | 231g |
