Description
Technical Specs for Reolink CX820
| Image Sensor | 1/1.8" CMOS sensor |
| Resolution |
3840*2160（8Megapixels)@25FPS
|
| Lens |
f=4mm F=1.0, with IR Cut
|
| Video Compression |
H.265/H.264
|
| Field of View | Horizontal: 93.2° Vertical: 48.2° Diagonal: 111.6° |
| Colour Night Vision | 3pcs/2.8W/3000K/400Lumens |
| Frame Rate | Main stream: 2fps - 25fps(default: 25fps) Sub stream: 4fps - 15fps(default: 10fps) |
| Code Rate |
Main stream:1024Kbps -8192Kbps(default: 6144Kbps) Sub stream: 64Kbps - 512Kbps(default: 256Kbps) |
| Audio |
Two-way audio |
| PoE | IEEE 802.3af, 48V Active |
| DC Power | DC 12.0V⎓1A, <12W |
| Power Port |
DC power port
|
| Ethernet Port |
One 10M/100Mbps RJ45
|
| SD Card Slot |
Supports Max. 256GB microSD card
|
| Audio In/ Out |
Built-in microphone & speaker
|
| Browsers Supported |
Edge, Chrome, Firefox, Safari
|
| OS Supported |
PC: Windows, Mac OS; Smartphone: iOS, Android
|
| Protocols & Standards |
HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
|
| Maximal User Access |
20 Users (1 admin account & 19 user accounts); Support up to 12 simultaneous video streams (10 substreams & 2 mainstreams)
|
| Smart Alarm |
Motion detection/person detection/vehicle detection/animal detection
|
| Recording Mode |
Motion-triggered recording (default); Scheduled recording; 24/7 recording
|
| Temperature |
Operating temperature: -10°C~+55°C
|
| Humidity |
Operating humidity: 10% ~ 90%
|
| Weatherproof |

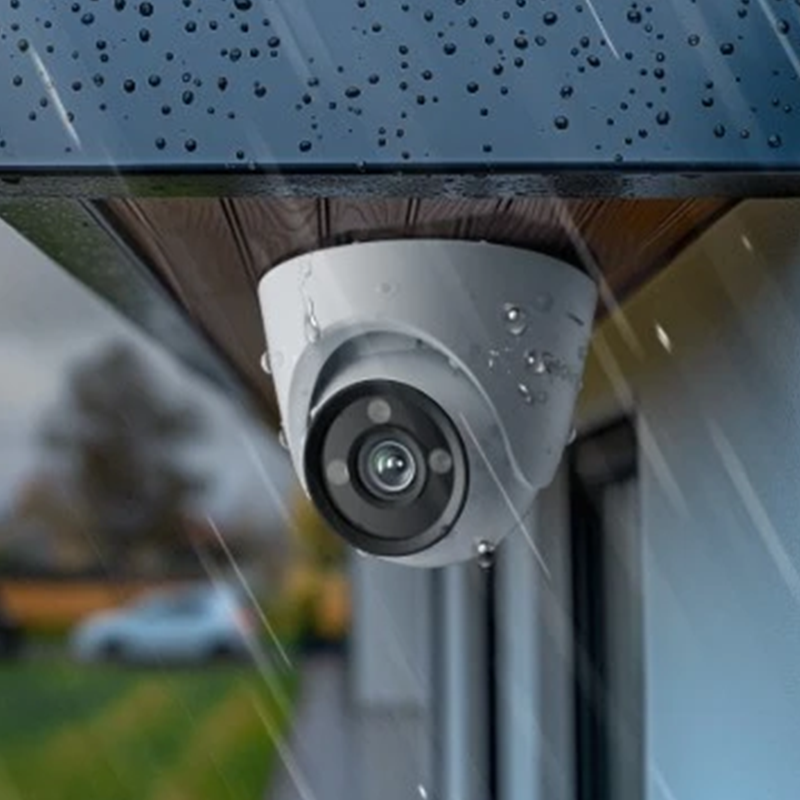

IP67
|
| Dimensions |
Φ 117.4x 103.8mm
|
| Weight |
515g
|
FAQs for Reolink CX820
Does the camera offer true colour night vision when the warm light is off？
Yes, thanks to the ColorX technology, the camera can still provide color night vision without the warm light on. Featuring an F1.0 large aperture that allows four times more light in than an F2.0 aperture. Additionally, the camera is equipped with a 1/1.8" advanced sensor, enabling it to deliver clear and vivid full-color night vision even without additional lighting. You can also turn on the warm light for even higher quality color night vision.
Yes, thanks to the ColorX technology, the camera can still provide color night vision without the warm light on. Featuring an F1.0 large aperture that allows four times more light in than an F2.0 aperture. Additionally, the camera is equipped with a 1/1.8" advanced sensor, enabling it to deliver clear and vivid full-color night vision even without additional lighting. You can also turn on the warm light for even higher quality color night vision.
Can I turn off the warm light and siren?
Yes, you can turn off the warm light and siren manually.
By default, the camera's warm light and siren are motion activated: they will be turned on automatically when a motion is detected. You can turn them off, adjust the brightness of warm light, or customize the siren to your liking.
The camera can provide clear and natural true full-color night vision even without turning on the warm light. You can also choose to turn on the warm light to enhance the quality of the color night vision in extremely dark environments.
Yes, you can turn off the warm light and siren manually.
By default, the camera's warm light and siren are motion activated: they will be turned on automatically when a motion is detected. You can turn them off, adjust the brightness of warm light, or customize the siren to your liking.
The camera can provide clear and natural true full-color night vision even without turning on the warm light. You can also choose to turn on the warm light to enhance the quality of the color night vision in extremely dark environments.
Does the camera support person/vehicle/animal detection?
Yes, this camera supports person/vehicle/animal detection.
Yes, this camera supports person/vehicle/animal detection.
Does the camera support two-way audio?
Yes, the camera supports two-way audio via its built-in mic and speaker. You can not only capture videos with audio recorded but also have real-time communication with people on the camera's end through Reolink App or Client.
Yes, the camera supports two-way audio via its built-in mic and speaker. You can not only capture videos with audio recorded but also have real-time communication with people on the camera's end through Reolink App or Client.
How can I power up this camera?
There are two methods:
1. Via an Ethernet cable, connect the camera to a PoE NVR, PoE injector, PoE switch, or directly to a router with a PoE port, for both power supply and video signal transmission.
Note: Please make sure that the PoE injector/switch is 802.3 af compliant (48V) and supports active mode.
2.Via a DC 12V 1A power adapter (purchased separately), connect the camera to power outlet for power supply only.
There are two methods:
1. Via an Ethernet cable, connect the camera to a PoE NVR, PoE injector, PoE switch, or directly to a router with a PoE port, for both power supply and video signal transmission.
Note: Please make sure that the PoE injector/switch is 802.3 af compliant (48V) and supports active mode.
2.Via a DC 12V 1A power adapter (purchased separately), connect the camera to power outlet for power supply only.
What Ethernet cable do I need?
The camera supports T-568B connectors and 8-PIN Ethernet cables of CAT5 or higher.
The camera supports T-568B connectors and 8-PIN Ethernet cables of CAT5 or higher.
Where are the recordings stored? Is NVR a must?
The camera can work without an NVR.
1. When it works without an NVR, the recordings can be saved to the microSD card (purchased separately);
2. When it works with an NVR, the recordings can be saved to the NVR.
Note: For best compatibility, do not use the camera with third-party NVRs.
The camera can work without an NVR.
1. When it works without an NVR, the recordings can be saved to the microSD card (purchased separately);
2. When it works with an NVR, the recordings can be saved to the NVR.
Note: For best compatibility, do not use the camera with third-party NVRs.
Does the camera compatible with my Reolink PoE NVR?
This camera is compatible with Reolink PoE NVR of the following hardware versions: H3MB18, N2MB02, N3MB01, N7MB01, H3MB18, N6MB01, N5MB01. For best performance, you need to upgrade the NVR's firmware to the latest version for video displaying.
Reolink PoE NVRs that are currently available for sale support all the PoE standalone and plug-in WiFi cameras. However, if you have already had a Reolink PoE NVR, you can check if its hardware version is compatible with this camera.
This camera is compatible with Reolink PoE NVR of the following hardware versions: H3MB18, N2MB02, N3MB01, N7MB01, H3MB18, N6MB01, N5MB01. For best performance, you need to upgrade the NVR's firmware to the latest version for video displaying.
Reolink PoE NVRs that are currently available for sale support all the PoE standalone and plug-in WiFi cameras. However, if you have already had a Reolink PoE NVR, you can check if its hardware version is compatible with this camera.
What kind of microSD card can I use?
This camera supports up to 256GB microSD cards with FAT32 format and Class 10 read & write speed.
This camera supports up to 256GB microSD cards with FAT32 format and Class 10 read & write speed.
Does the camera support NAS?
Yes, the camera supports NAS.
Yes, the camera supports NAS.
How do I use live view and playback?
You can add and set up the camera on Reolink APP/Client. Then click the camera to check the live view and playback of it from anywhere, at any time.
Reolink APP/Client is free of charge and the service is free of subscription.
You can add and set up the camera on Reolink APP/Client. Then click the camera to check the live view and playback of it from anywhere, at any time.
Reolink APP/Client is free of charge and the service is free of subscription.
Does Reolink charge subscription fees for the camera or the Reolink application?
No. Reolink does not charge any subscription fees for camera or Reolink App. All features of this camera as well as the Reolink App are completely free and require no subscription.
No. Reolink does not charge any subscription fees for camera or Reolink App. All features of this camera as well as the Reolink App are completely free and require no subscription.
Why can't I connect the camera to 3rd party softwares?
The RTSP and other ports may be disabled by default. You can launch Reolink Client, then go to Device Settings >> Network >> Advanced >> Port Settings to make sure all ports are enabled before using 3rd party softwares.
The RTSP and other ports may be disabled by default. You can launch Reolink Client, then go to Device Settings >> Network >> Advanced >> Port Settings to make sure all ports are enabled before using 3rd party softwares.
