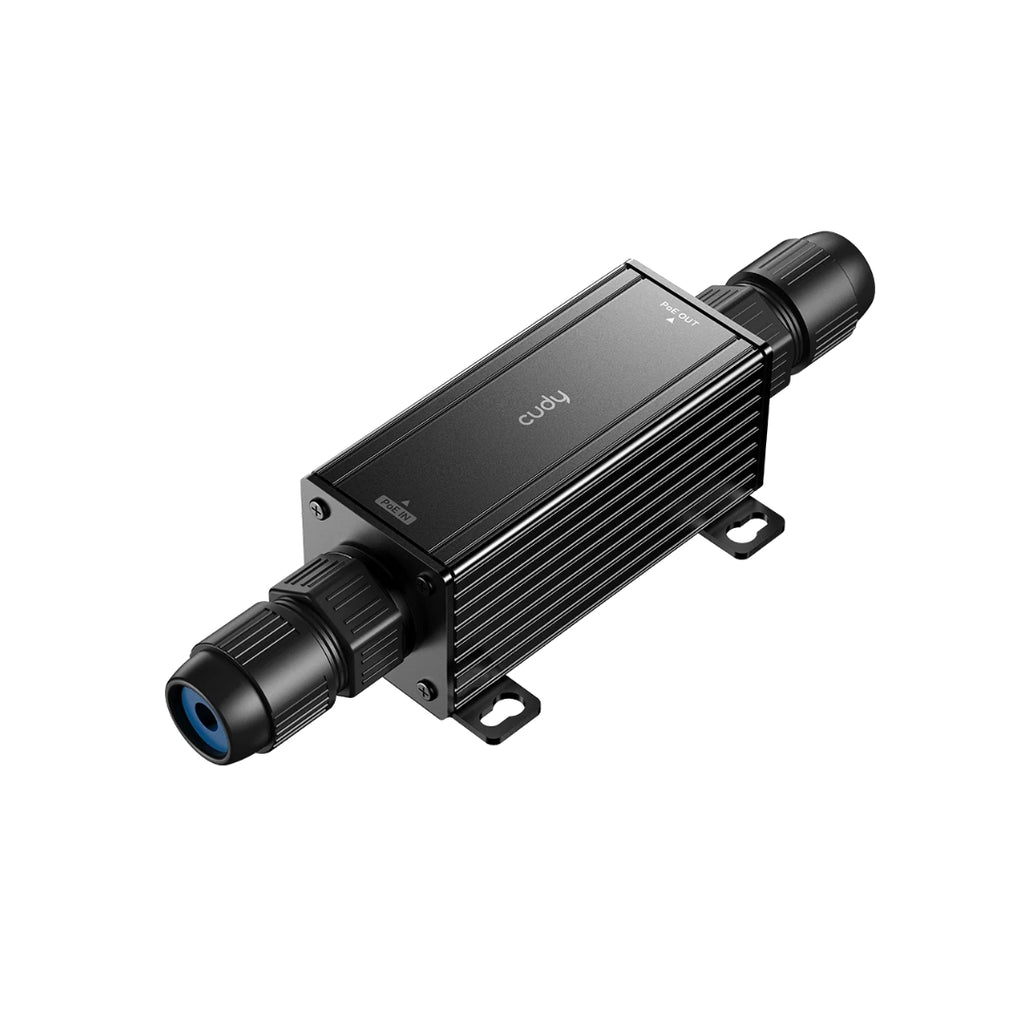

Extend PoE and network connectivity far beyond standard Ethernet limits with the Cudy outdoor Gigabit PoE Extender. Designed for demanding outdoor installations, this weatherproof extender adds up to 100 metres of additional PoE reach while maintaining Gigabit speeds for IP cameras, wireless access points, VoIP devices and other PoE-powered equipment.
Featuring an IP67-rated enclosure, 6kV surge protection and support for IEEE 802.3af/at PoE standards, this rugged extender is built to perform reliably in harsh weather conditions without requiring any configuration.
Key Features
- Extends PoE and Ethernet connections by up to 100 metres
- IP67 weatherproof outdoor-rated design
- Gigabit Ethernet input and output ports
- Supports IEEE 802.3af and 802.3at PoE standards
- Up to 30W PoE output power
- 6kV surge protection for enhanced reliability
- Daisy-chain up to three extenders for distances up to 400 metres
- Durable aluminium alloy housing
- Wall-mountable design with mounting hardware included
- Plug-and-play installation with no setup required
Extend PoE up to 400 Metres
Need to install devices where standard Ethernet cable runs fall short? The extender adds up to 100 metres of additional range and can be daisy-chained with up to three units, allowing total transmission distances of up to 400 metres while maintaining Gigabit connectivity.
- 100m extension per unit
- Up to 400m total distance with daisy chaining
- Gigabit network performance
- Supports long-distance security deployments
Built for Outdoor Installations
Engineered for exposed environments, the IP67-rated enclosure protects against water, dust and harsh weather. The reinforced design is ideal for security cameras, outdoor Wi-Fi access points and network equipment installed in challenging locations.
- IP67 waterproof protection
- Dust-resistant construction
- Heavy rain and outdoor weather resistance
- Corrosion-resistant aluminium housing
Reliable in Extreme Conditions
With industrial-grade protection and a wide operating temperature range, the extender delivers dependable performance throughout the year.
- Operating temperature: -20°C to 70°C
- 6kV surge protection
- Overvoltage protection
- Short-circuit protection
- Automatic voltage regulation
- Polarity protection
Gigabit Performance for Modern Networks
Unlike slower Fast Ethernet extenders, this model supports full Gigabit speeds, making it suitable for bandwidth-intensive applications including high-resolution surveillance cameras, wireless access points and VoIP systems.
- 10/100/1000 Mbps connectivity
- 4K-capable IP camera installations
- High-speed wireless access points
- VoIP and communication systems
- Outdoor network expansion projects
Simple Plug-and-Play Installation
No software, configuration or management is required. Simply connect the extender inline with your PoE run and power is automatically passed through to connected devices. Wall-mount hardware is included for quick deployment.
Ideal For
- Outdoor IP camera installations
- Car parks and industrial sites
- Warehouses and business premises
- Long-distance PoE deployments
- Outdoor Wi-Fi access points
- VoIP and communications infrastructure
- Parks, campuses and remote buildings
