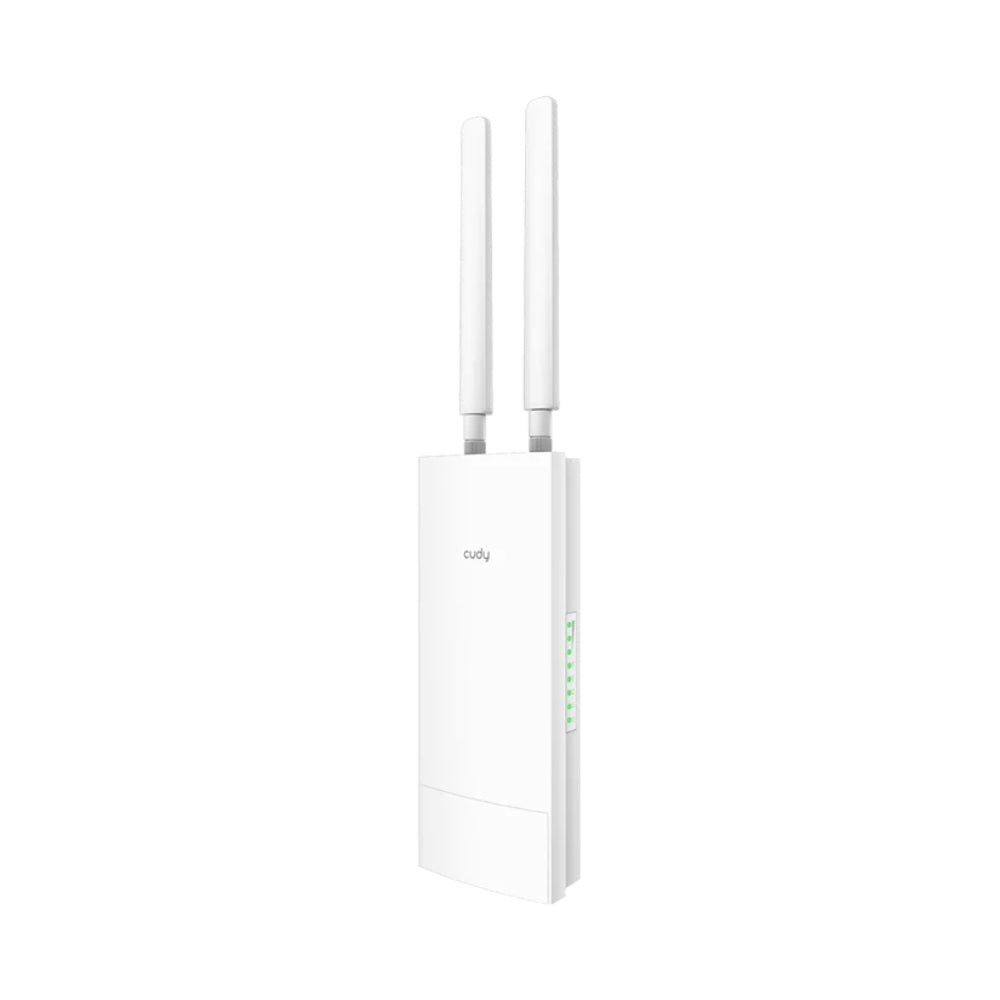

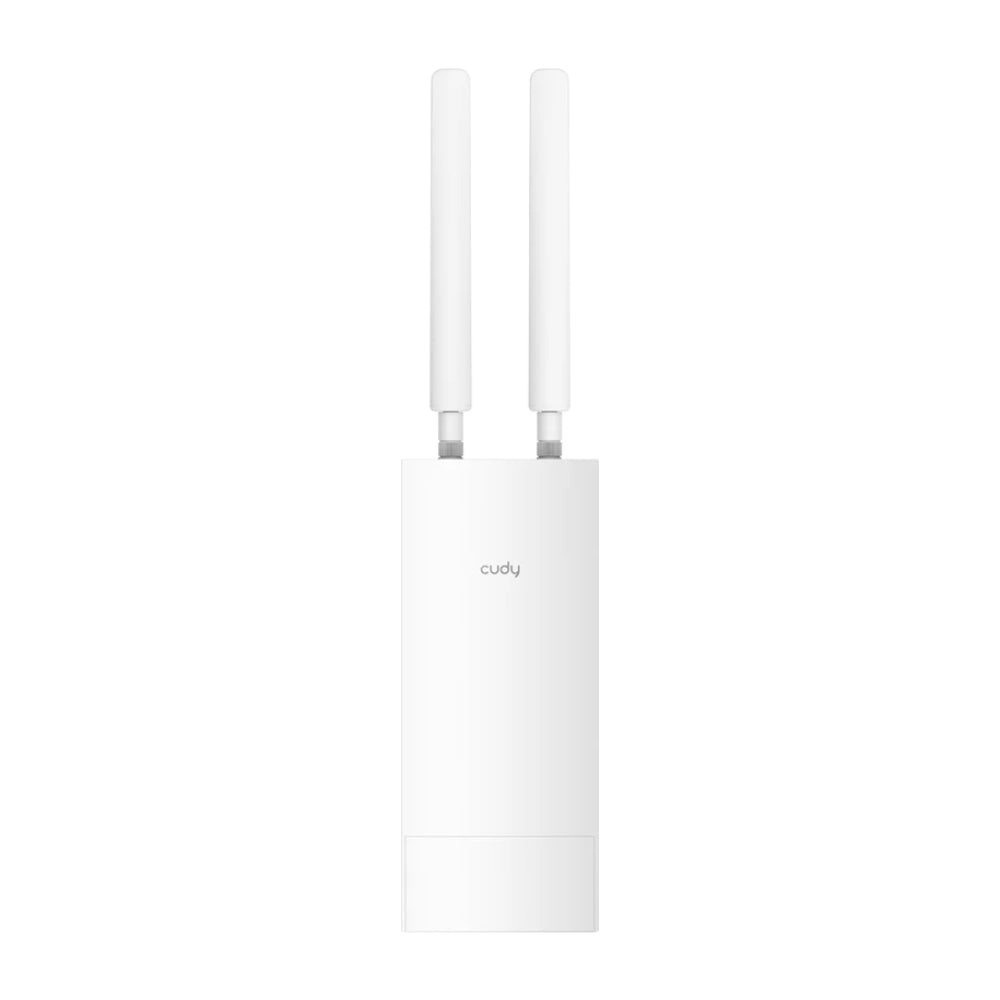

A pole/wall-mounted outdoor 4G CPE with IP65 casing, dual-band WiFi, one SIM slot, and accepting PoE, featuring AC1200 Wi-Fi, Cudy Mesh main node, and VPN features
- IP65, -40~65°C (-40~149°F), 4kV Surge
- 4G Cat. 4 with Max 150 Mbps DL
- 4-Stream Dual-Band Wi-Fi 5
- 867 Mbps + 300 Mbps Wi-Fi
- 1× Fast Ethernet Port (PoE In)
- 1× Nano SIM Slot
- 50 Connected Devices
- 24V Passive PoE
- Cudy Mesh, VPN Server and Client
- Cudy App, Cloud Control
Turn Everywhere 4G into Speedy AC1200 Wi-Fi: With 4G Cat. 4 standards, LT500 Outdoor communicates with a 4G tower with speeds of up to 150 Mbps download and 50 Mbps upload. With MU-MIMO and dual-band features, the AC1200 Wi-Fi shares the fast 4G with over 30 devices while minimizing the latency.
Boosted Wi-Fi Coverage with Beamforming: Tested Wi-Fi coverage performance in four different scenarios, achieved by Beamforming technology and two built-in antennas. If your space is too large for one Cudy 4G Outdoor Router to cover, you can expand your Wi-Fi coverage into a Mesh network by adding another Cudy AP.
Works in the Rain, Thunder, Dust, Heat, Cold: The device is protected by an IP65 standard case, shielding it from rain and dust when installed vertically. It also features 4kV Lightning/Surge and 8kV ESD protection for higher thunderstorm reliability. It's working temperatures span from -40°C to 65°C.
Outdoor Full-Bar 4G Signal Brings High-Quality Wi-Fi

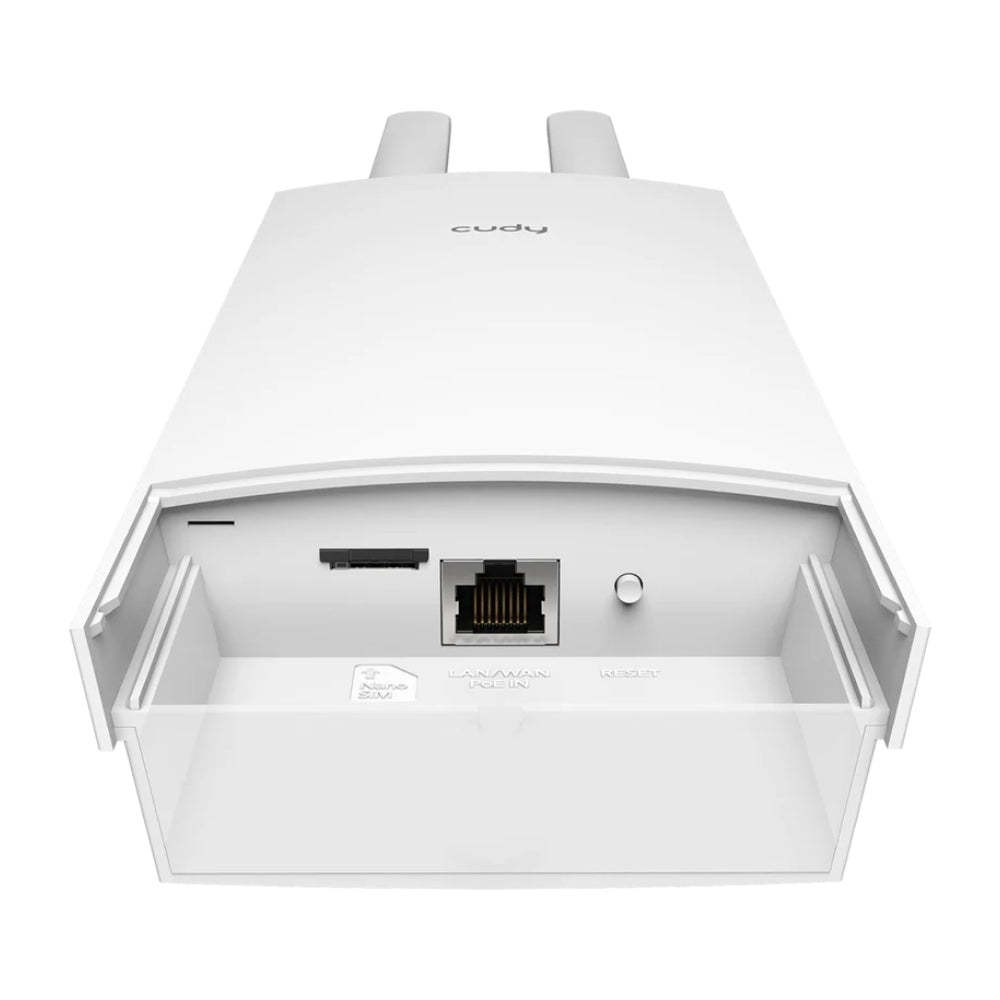

Insert a SIM, Enjoy Wi-Fi: Install Wi-Fi anywhere is as easy as plugging a SIM card and booting it up with the PoE adapter. One PoE Adapter is included in the box.
Pull Network to 100 m Away: Plug your Ethernet cable into the PoE adapter to get up to 100 m of wired network reach. The extra cable is not included in the box.
Install an AP for Indoor Wi-Fi: Connect an AP to the PoE adapter to equip your cafe, home, or office with a better Wi-Fi signal. AP needs to be purchased separately.
Install Extension Antennas: The default 4G antennas are as sensitive as a standard phone's antennas. You can still replace them with customized ones via the SMA connectors.
A Quick Guide to Network Installation
Gigabit Solution (Gigabit speed only in Intranet, suitable for NAS users):
- Switch: Cudy GS108 (Skip this if you don't require extra wired connections)
- AP: Cudy WR1300E/WR1300/WR3000 (Choose AP mode during setup)
Budget Solution: AP: Cudy WR1200 (Choose AP mode during Setup)

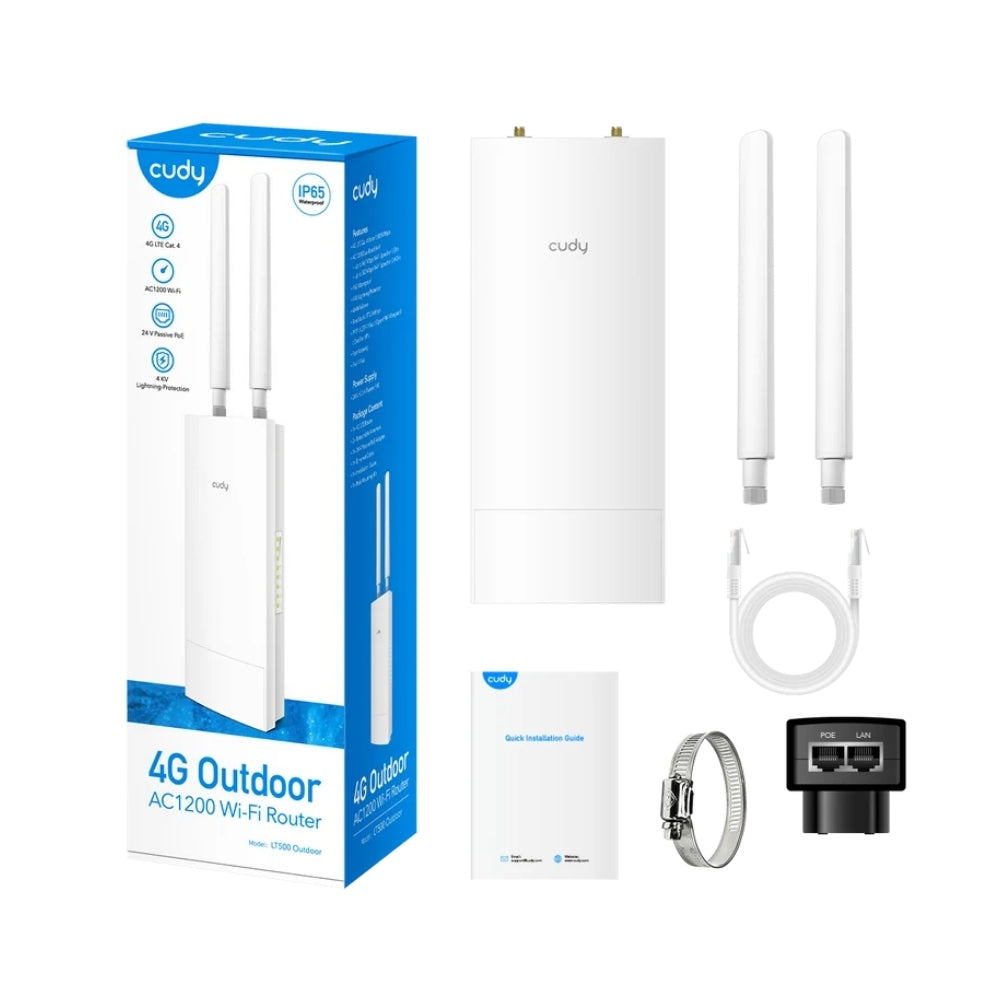

Mounting Kit Included: A mounting kit is included in the box, supporting:
- Wall-Mounting
- Pole-Mounting
Cudy App: Manage your network from your phone. This model supports cloud remote control and local control via the Cudy App.
