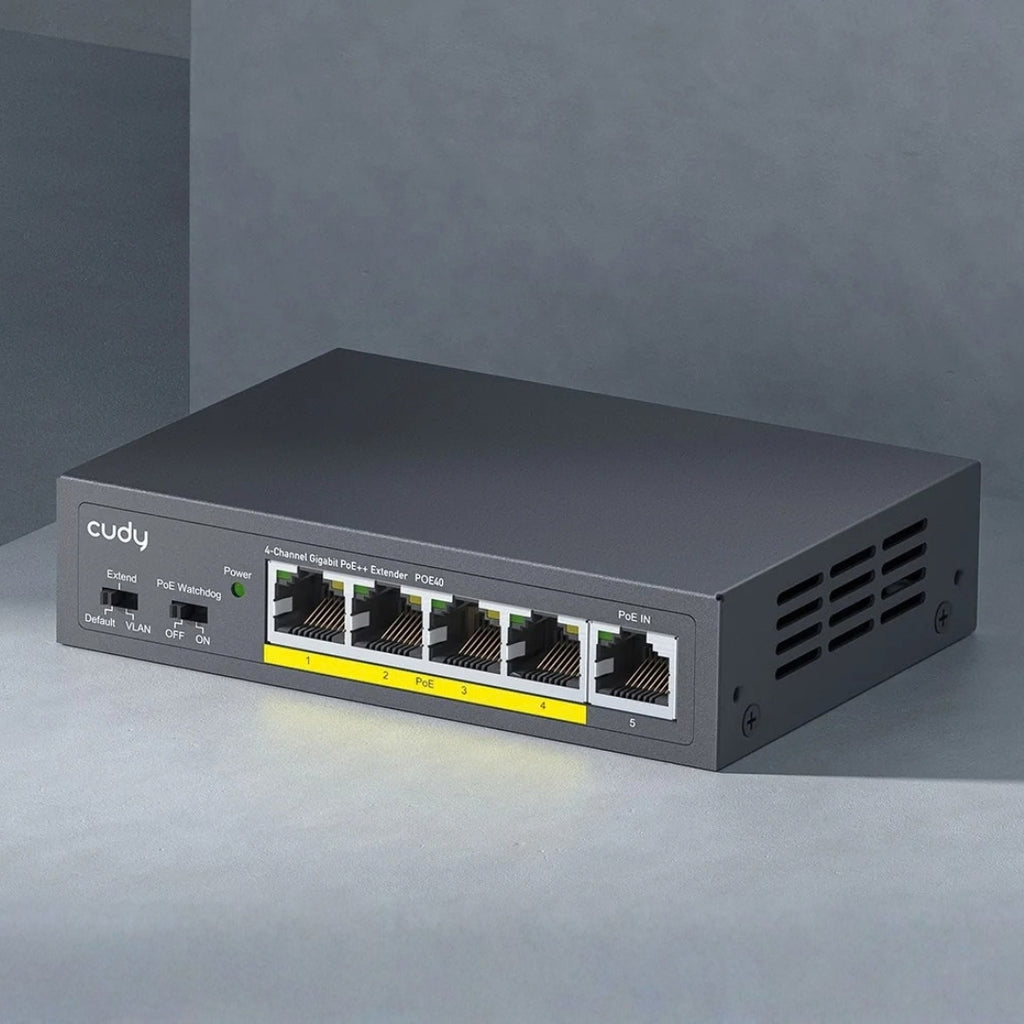

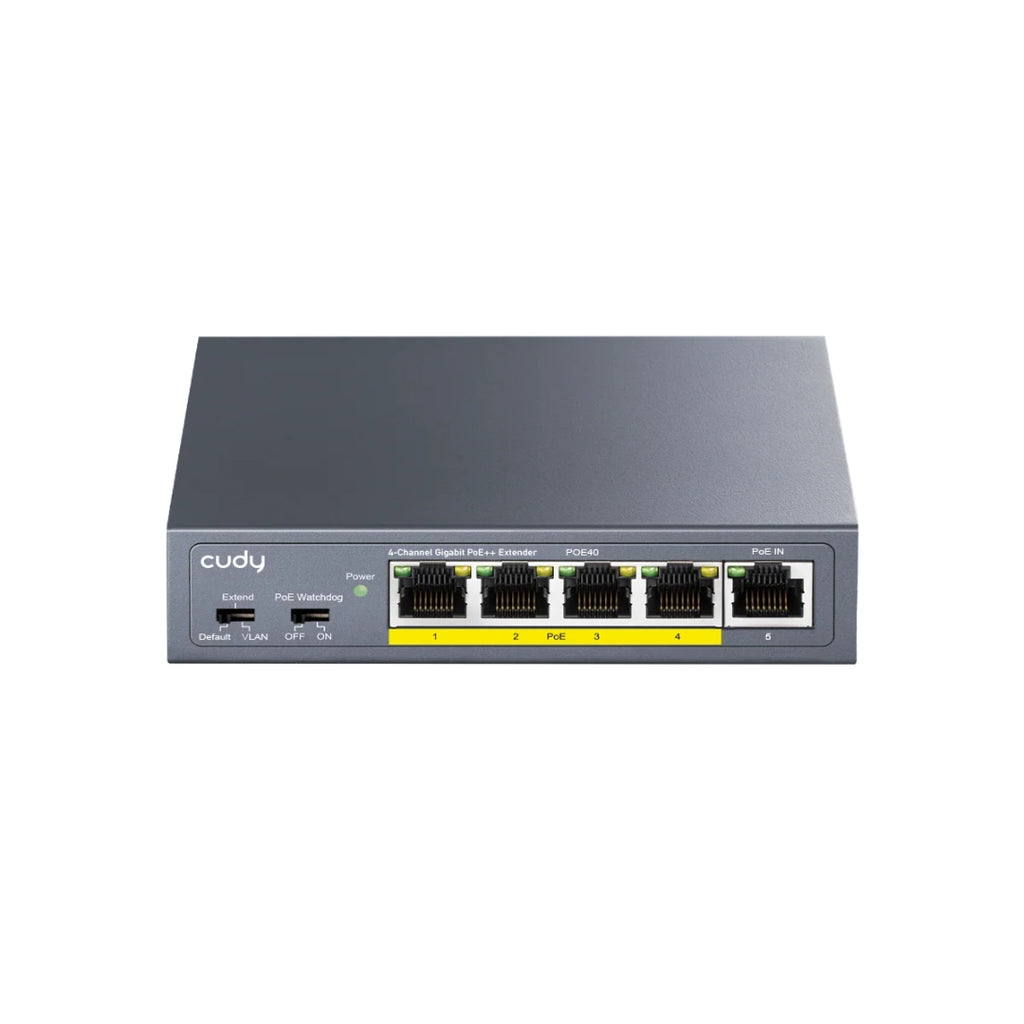

The Cudy POE40 is a 4-port Gigabit PoE++ extender designed to expand your PoE network while extending both power and data to remote devices. Using a single PoE input, it delivers connectivity and power to up to four PoE devices, making it ideal for IP cameras, wireless access points, VoIP phones and access control systems.
Supporting PoE standards up to 802.3bt, the POE40 can extend network connections up to 100 metres at Gigabit speeds or up to 250 metres in Extend Mode. With VLAN isolation, Watchdog functionality and hassle-free plug-and-play operation, it's a simple and cost-effective solution for extending PoE installations.
Key Features:
- 1× Gigabit PoE++ input port
- 4× Gigabit PoE+ output ports
- Supports IEEE 802.3bt/at/af standards
- Up to 30W output per PoE port
- Extends PoE up to 250 metres
- Gigabit data transmission up to 100 metres
- VLAN mode for improved network security
- Watchdog function for automatic device recovery
- Simple plug-and-play deployment
- Wall-mountable compact design
4-Channel Gigabit PoE++ Extender
- 1000 Mbps
- 802.3af/at/bt
- Plug and Play
- 250 Metres (Extend Mode)

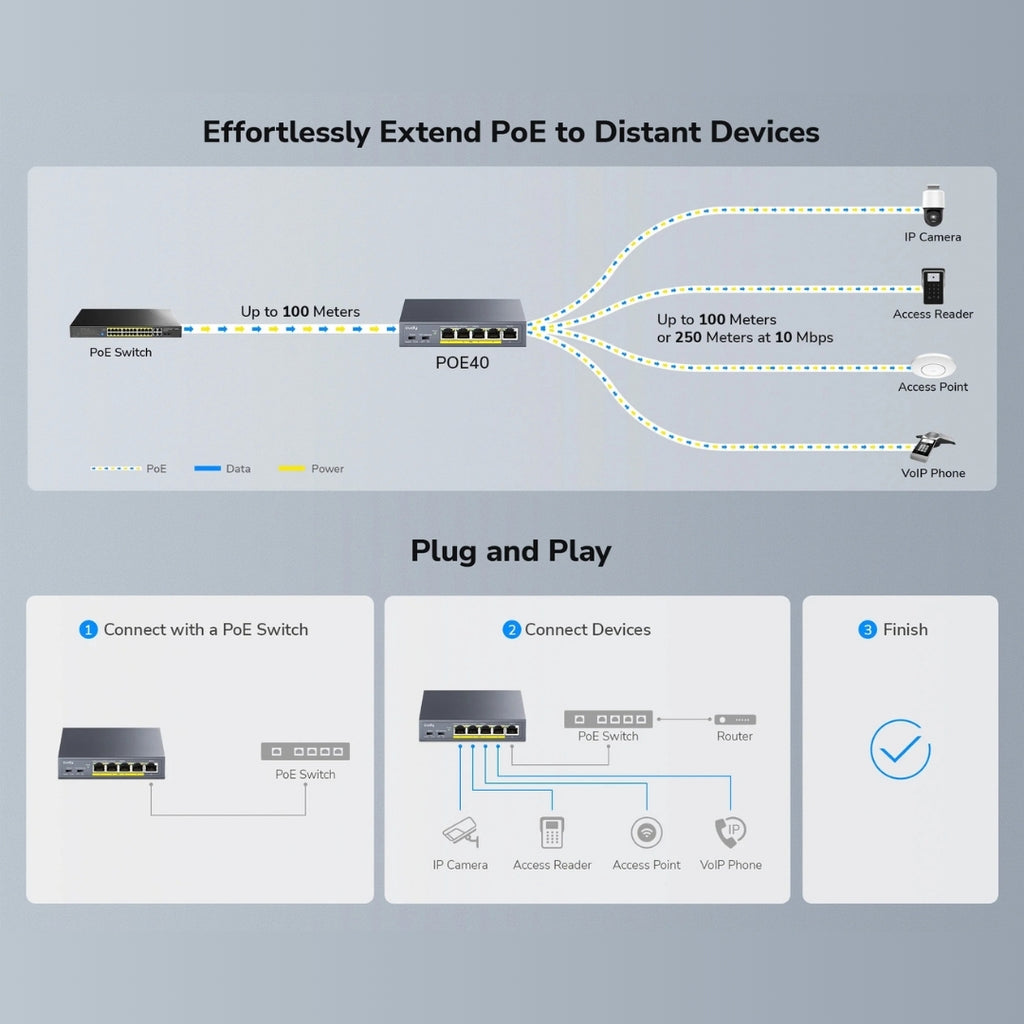

Effortlessly Extend PoE to Distant Devices
- Set up this PoE extender up to 100 metres away from your PoE Switch
- Set up this PoE extender up to 100 metres from your devices (IP Cameras, Access Readers, Access Points, VoIP phones, etc) or up to 250 metres at 10 Mbps.
Power, Speed & Control in One
1 PoE In | 4 PoE Out: Expand your PoE network effortlessly with one input (up to 90W) powering 4 outputs (up to 30W each).

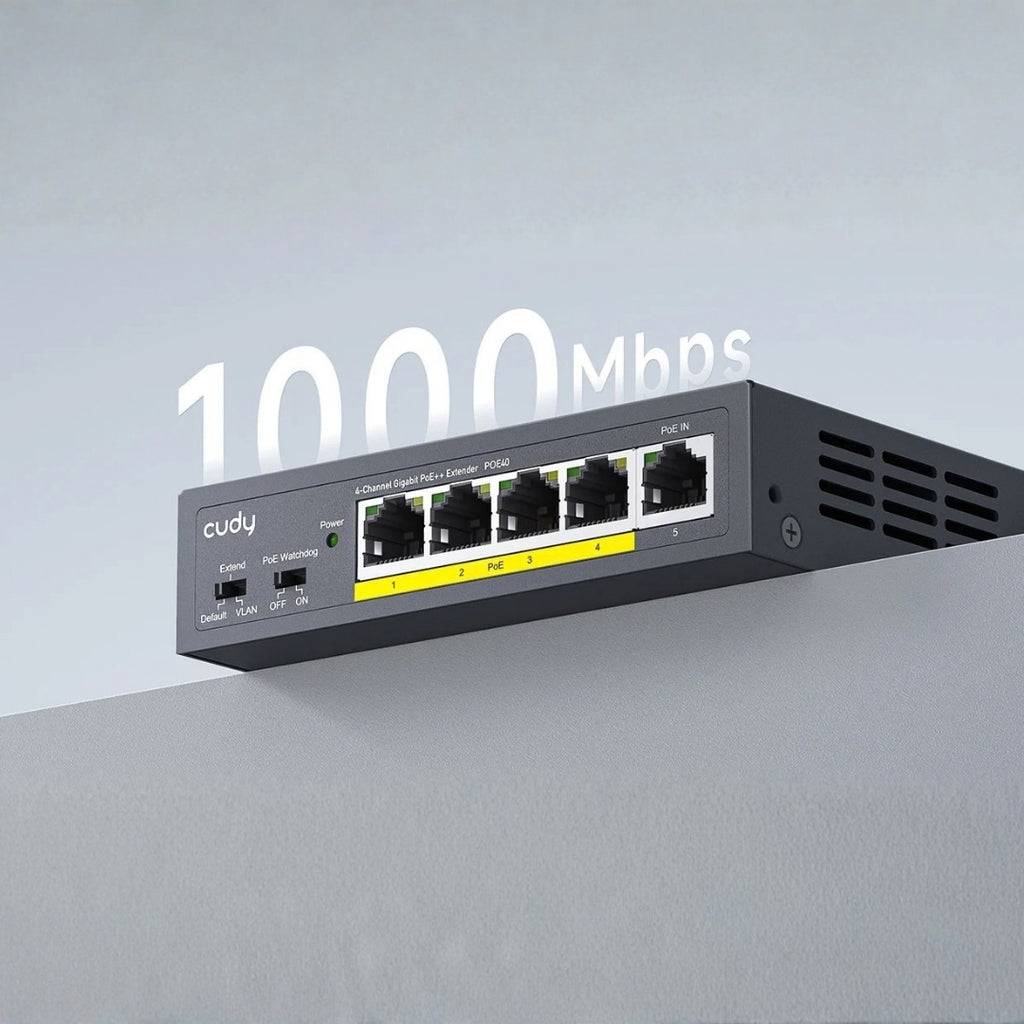

Gigabit Speed Experience: Experience ultra-fast data transmission with a dedicated Gigabit port, ensuring blazing speeds and reliable connectivity for your network.

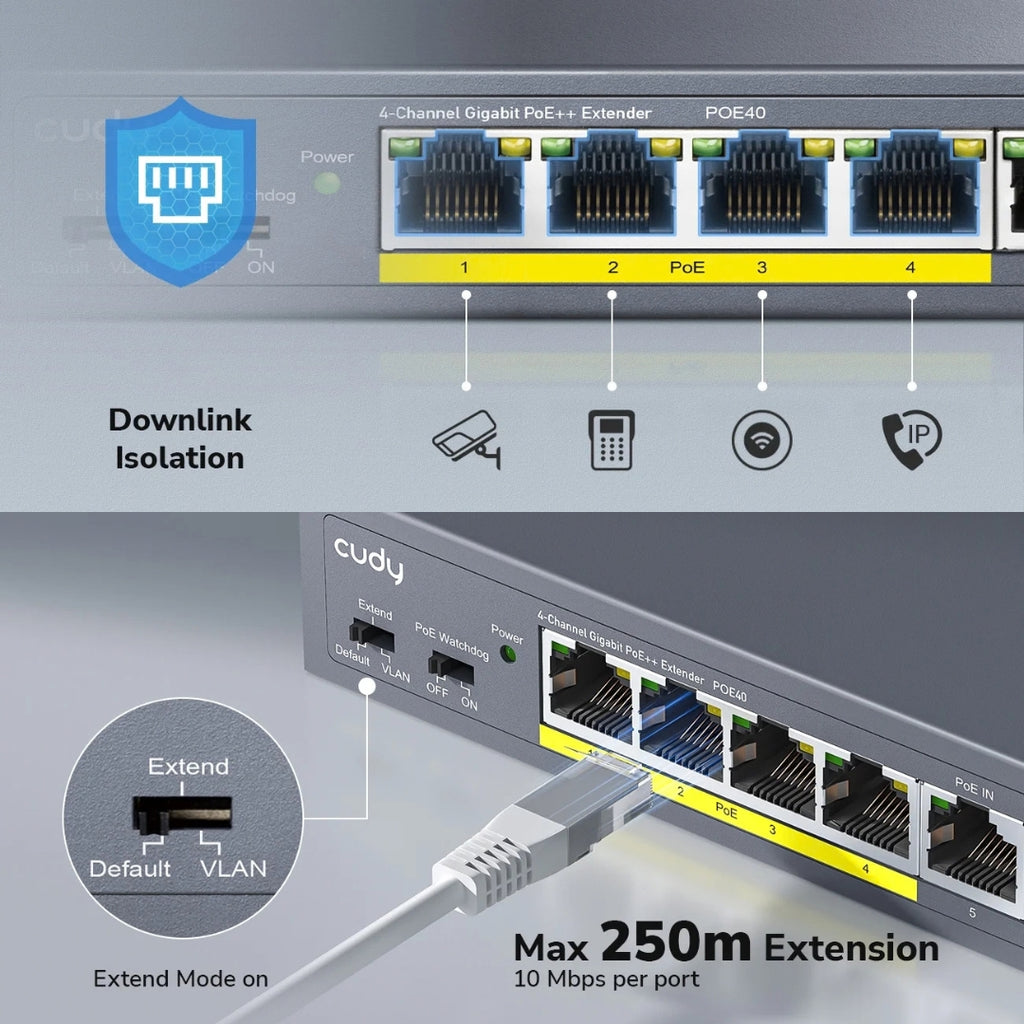

VLAN Mode: Prevent down link ports to communicate with each other, improving network security.
Extend Mode: Prolong the transmission to a maximum of 250 meters and simplify installation. (These ports' speed will be capped at 10 Mbps.)

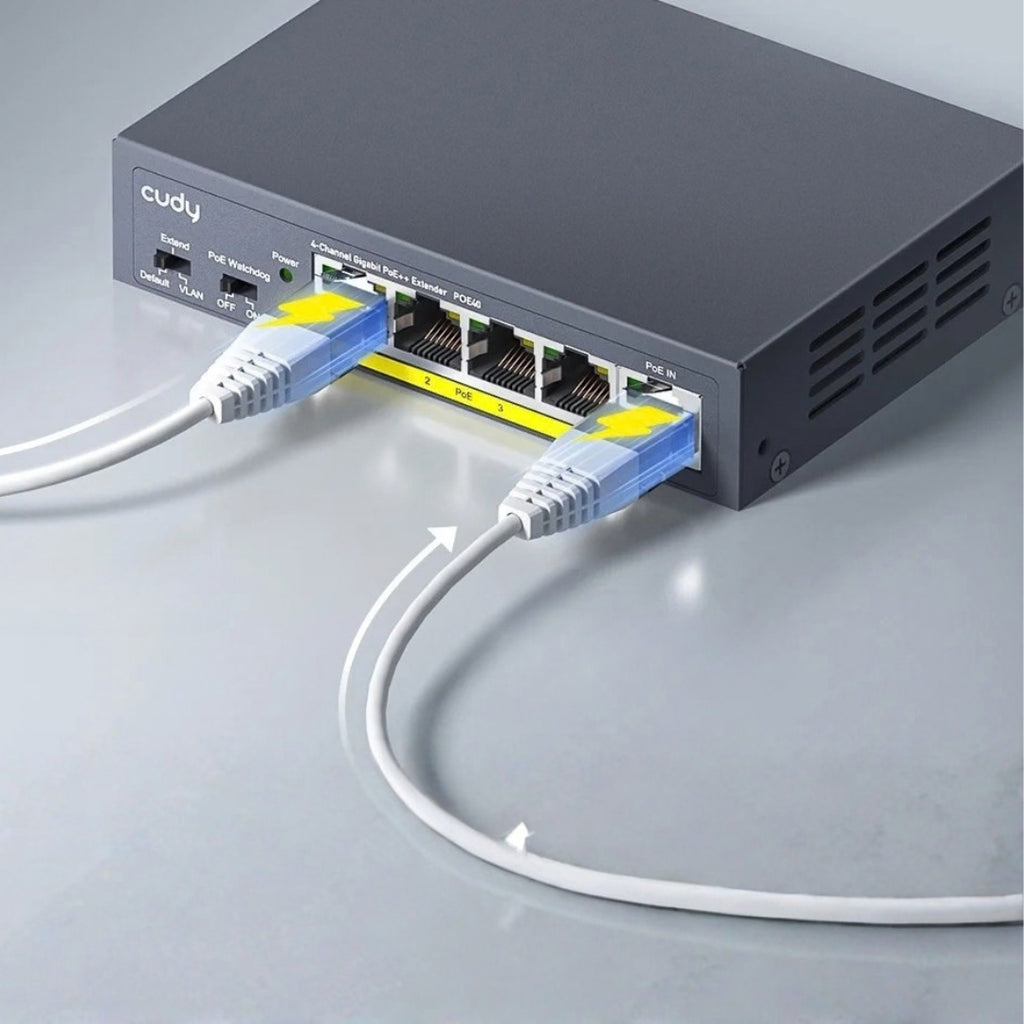

Plug and Play
- Connect with a PoE switch
- Connect Devices
- Finish
Suitable for versatile scenarios, eg Surveillance, VoIP Conference Calls, Wi-Fi Coverage
