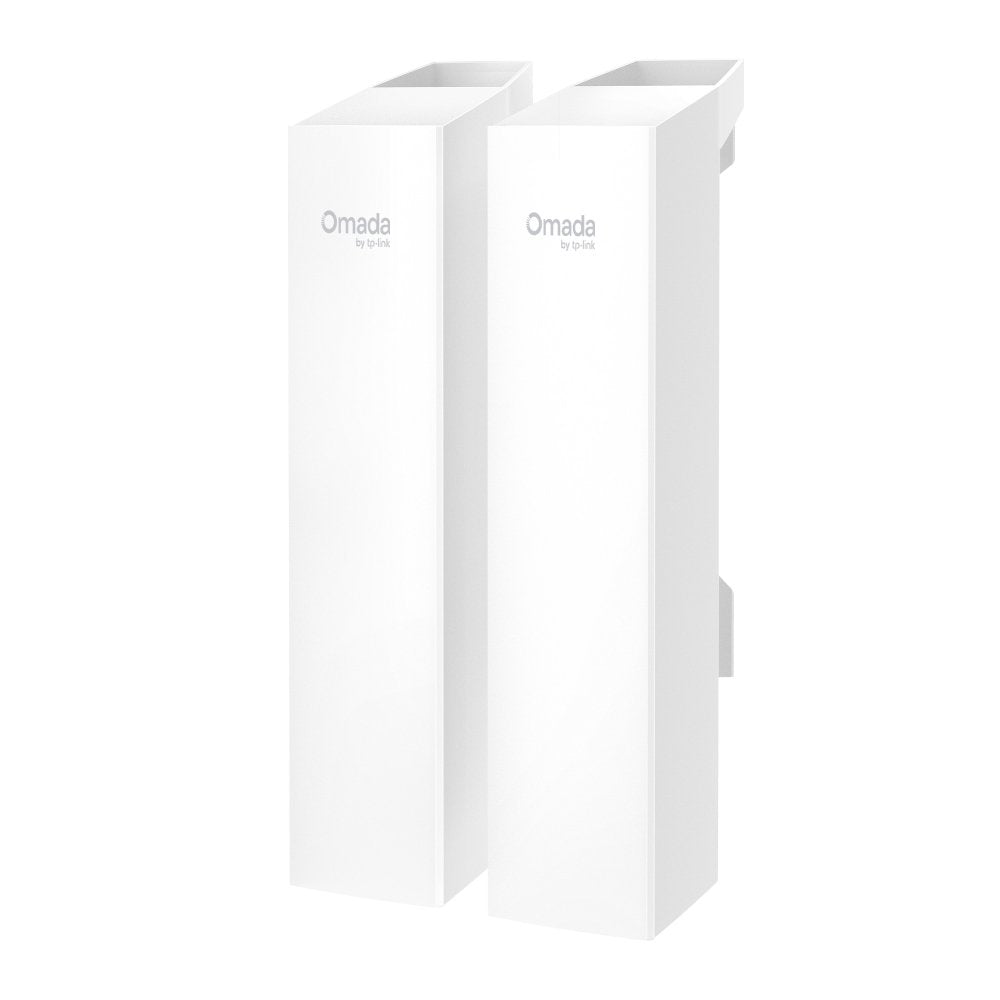

The Omada 5GHz 867Mbps Long Range Indoor Outdoor Wireless Bridge is designed to provide long distance point to point or point to multipoint connectivity, delivering stable 5 GHz wireless links and supporting transmission distances up to 3.1 miles. It offers high throughput through 802.11 a, n, and ac standards, supported by 2x2 MIMO antennas and multiple Gigabit Ethernet ports for efficient device integration.
The device operates as part of the Omada SDN platform, enabling centralized control through Omada Central, Omada Hardware Controller, or Omada Software Controller. It supports remote configuration and monitoring through the Omada App or Web UI, ensuring consistent management, operational visibility, and network security across distributed environments.
Equipped with Omada SmartBridging: Our unique design for the most effortless and easy bridge setup ever.
Plug-and-Play with Preconfigured Kit: Preconfigured for instant auto-pairing, the bridges deliver instant connectivity right out of the box.
Unique Design for Instant Multi-Bridge Auto-Pairing: Effortlessly connect multiple bridges with PtMP Auto-Pairing.
App-Guided Alignment: Visualized App-Guided Alignment for Long-Distance Setups and Instant Speed Testing for Installation Verification.
Flexible Power Supply: 802.3af PoE, 24V Passive PoE, and 12V DC (compatible with TP-Link solar power supply system)

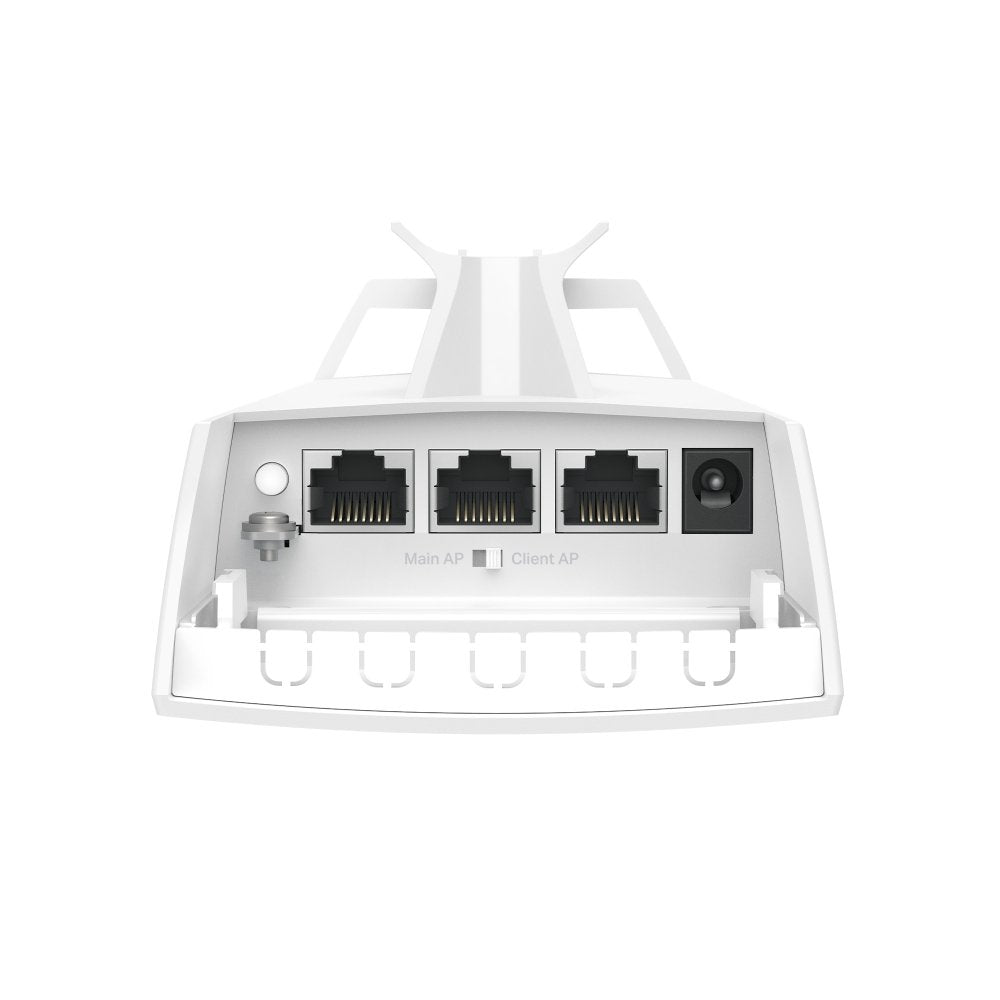

3× Gigabit Ethernet Ports: Connects more cameras and devices without an extra switch△
Built for Tough Outdoor Conditions: IP65 weatherproof enclosure and operating range of -40 °C to +70 °C.**
Remote Monitoring & Management: Standalone mode or Omada SDN mode for remote centralized management via Web UI or App†
Connectivity and Performance: The wireless bridge supports 5 GHz IEEE 802.11 a, n, and ac standards, delivering speeds up to 867 Mbps for stable long range transmission. Its internal 2x2 dual polarized directional MIMO antennas provide focused signal strength with a 14.0 dBi gain, optimized horizontal and vertical beamwidths, and coverage up to 5,000 meters. Three Gigabit Ethernet ports allow direct connection of multiple devices such as cameras or network equipment, while flexible power options through 802.3af PoE, 24 V passive PoE, or 12 V DC ensure adaptable deployment.
Centralized Control and Scalability: Integration within the Omada SDN ecosystem enables full centralized management through cloud based or on premises controllers. The device supports zero touch provisioning, Web based management, and the Omada App for streamlined deployment and monitoring. System features such as multiple SSIDs, wireless scheduling, and role switching through the DIP switch enhance flexibility for scalable point to point or point to multipoint installations.
Security and Resilience: The bridge includes wireless security features such as VLAN support, rogue AP detection, MAC filtering for up to 4,000 entries, and configurable wireless encryption. Hardware durability is ensured by an IP65 weatherproof enclosure, a wide operating temperature range from negative forty degrees Celsius to seventy degrees Celsius, and built in lightning protection meeting multiple discharge standards. Reliability is further supported through features such as rate limiting, guest network controls, SSH, SNMP, and backup and restore capabilities.
